Schneider Electric NSYSFND208
Plain door, PanelSeT SFN, PanelSeT SM, for electrical enclosure H2000 W800mm
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Specification
| Range |
PanelSeT |
|---|---|
| Accessory / separate part category |
Enclosure accessory |
| Product or component type |
Door |
| Application |
Multi-purpose |
| For enclosure nominal dimensions |
– H: 2000 mm W: 800 mm |
| Mounting location |
Side, Front |
| Range compatibility |
PanelSeT SFN |
| Device composition |
1 door, 1 lock with handle and 5 mm double bar insert, 1 locking bar system 4 points, 1 reinforcement frame, 4 hinges, 4 locking bar catches |
| Quantity per set |
Set of 1 |
| Material |
Sheet steel |
| Colour |
Grey (RAL 7035) |
| Surface finish |
Epoxy-polyester powder |

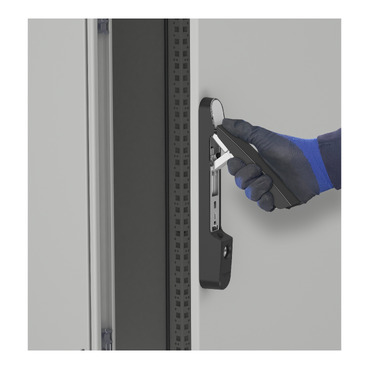

| Lock type |
Lock 5 mm double bar |
| Number of locks |
1 |
| Door type |
Plain |
| Door opening side |
Reversible (120 °) |

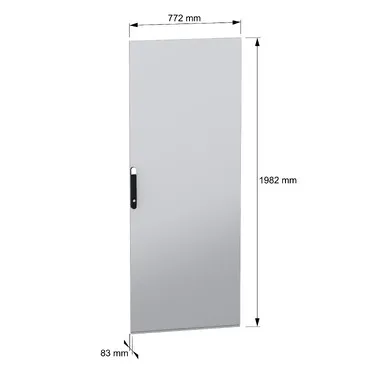

| Height |
Nominal: 2000 mm |
| Width |
Nominal: 769 mm |
| Net weight |
18.4 kg |
| IK degree of protection |
IK10 |
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
5.000 cm |
| Package 1 Width |
78.000 cm |
| Package 1 Length |
200.000 cm |
| Package 1 Weight |
31.000 kg |
| Unit Type of Package 2 |
P2M |
| Number of Units in Package 2 |
12 |
| Package 2 Height |
82.000 cm |
| Package 2 Width |
120.000 cm |
| Package 2 Length |
200.000 cm |
| Package 2 Weight |
400.000 kg |
| Warranty |
18 months |
