Schneider Electric NSYSFND20122DT

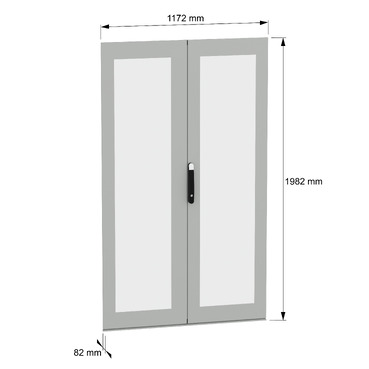

Double glazed door, PanelSeT SFN, PanelSeT SM, for electrical enclosure H2000 W1200mm
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Specification
| Range |
PanelSeT |
|---|---|
| Accessory / separate part category |
Enclosure accessory |
| Product or component type |
Door |
| Application |
Multi-purpose |
| For enclosure nominal dimensions |
– H: 2000 mm W: 1200 mm |
| Mounting location |
Front |
| Range compatibility |
PanelSeT SFN |
| Device composition |
1 lock with handle and 5 mm double bar insert, 1 locking bar system 4 points, 2 door, 1 locking bar system 2 points, 8 hinges |
| Quantity per set |
Set of 1 |
| Material |
Door: Securit glass, Door: sheet steel |
| Colour |
Grey (RAL 7035) |
| Surface finish |
Epoxy-polyester powder |
| Lock type |
Lock 5 mm double bar |
| Number of locks |
1 |
| Door type |
External transparent |
| Door opening side |
Reversible (120 °) |
| Maximum load |
60 kg/m² |
| Height |
Nominal: 1966 mm |
| Width |
Nominal: 1169 mm |
| Net weight |
23.4 kg |
| IK degree of protection |
IK08 |
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
200.000 cm |
| Package 1 Width |
68.000 cm |
| Package 1 Length |
10.000 cm |
| Package 1 Weight |
37.000 kg |
| Unit Type of Package 2 |
P2M |
| Number of Units in Package 2 |
8 |
| Package 2 Height |
98.000 cm |
| Package 2 Width |
200.000 cm |
| Package 2 Length |
120.000 cm |
| Package 2 Weight |
328.000 kg |
| Warranty |
18 months |
