Schneider Electric NSYSFBK
Coupling kit for Spacial SF enclosures The sealing gasket is made from EPDM, bracket is made from steel and flat connector is made from steel Anti-corrosion protection is ensured by an epoxy-polyester…
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

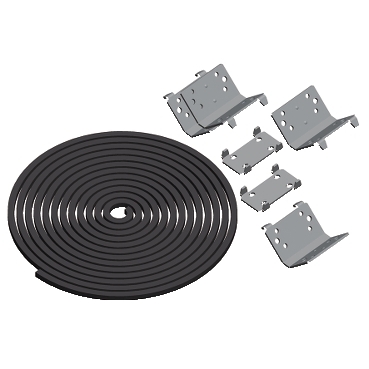

Coupling kit for Spacial SF enclosures The sealing gasket is made from EPDM, bracket is made from steel and flat connector is made from steel Anti-corrosion protection is ensured by an epoxy-polyester zinc coated coating Fixed on side coupling of 2 enclosures or depthwise coupling of 2 enclosures by screws of type M6 self tapping The kit is made of 2 flat connectors, 4 brackets, fixing elements and sealing gasket
Specification
| Range |
PanelSeT |
|---|---|
| Accessory / separate part category |
Coupling accessory |
| Product or component type |
Coupling kit |
| Anwendung |
Multi-purpose |
| Mounting location |
Side coupling of 2 enclosures, Depthwise coupling of 2 enclosures |
| Range compatibility |
PanelSeT SF suitable enclosure |
| Device composition |
2 flat connector, 4 bracket, fixing elements, sealing gasket |
| Quantity per set |
Set of 1 |
| Material |
Sealing gasket: EPDM, Bracket: steel, Flat connector: steel |
| Surface finish |
Zinc coated |
| Fixing mode |
By screws – screw type M6 self tapping |
| Height |
65 mm |
| Width |
340 mm |
| Depth |
365 mm |
| IP degree of protection |
IP55 |
| Mounting diameter |
0 mm |
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
6.500 cm |
| Package 1 Width |
34.000 cm |
| Package 1 Length |
36.500 cm |
| Package 1 Weight |
1.664 kg |
| Unit Type of Package 2 |
P12 |
| Number of Units in Package 2 |
100 |
| Package 2 Height |
116.000 cm |
| Package 2 Width |
80.000 cm |
| Package 2 Length |
120.000 cm |
| Package 2 Weight |
187.000 kg |
| Warranty |
18 months |
