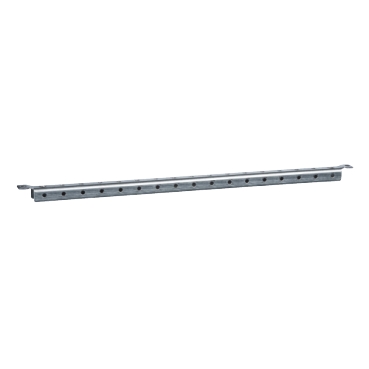

Schneider Electric NSYSDCR8
Spacial SF / SM door cross rails. Door width 800 mm. Direct fixing on the door reinforcement frame. Equipped with 5.2 mm drillings on a 25 mm pitch. In zinc-plated steel. Set of 2.
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Spacial SF / SM door cross rails. Door width 800 mm. Direct fixing on the door reinforcement frame. Equipped with 5.2 mm drillings on a 25 mm pitch. In zinc-plated steel. Set of 2.
Specification
| Range | PanelSeT |
|---|---|
| Product or component type | Door cross rail |
| Application | Multi-purpose |
| Nominal dimensions of the housing | – |
| Mounting location | On door reinforcement frame |
| Mounting support | Direct mounting |
| Range compatibility | PanelSeT SF, SM, SFX and SMX enclosures |
| Device composition | 2 x cross rail, 1 x bag of fixing |
| Quantity per set | Set of 1 |
| Material | Body of the rail: galvanised steel |
| Surface finish | Zinc coated |
| Adjustment | Adjustable in height every 25 mm for on door reinforcement frame |
| Height | Nominal: 18 mm |
| Width | Nominal: 800 mm |
| Depth | 18.6 mm |
| Thickness | 2 mm |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.500 cm |
| Package 1 Width | 5.000 cm |
| Package 1 Length | 68.000 cm |
| Package 1 Weight | 992.000 g |
| Unit Type of Package 2 | PAM |
| Number of Units in Package 2 | 200 |
| Package 2 Height | 45.000 cm |
| Package 2 Width | 100.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 212.400 kg |
| Warranty | 18 months |
