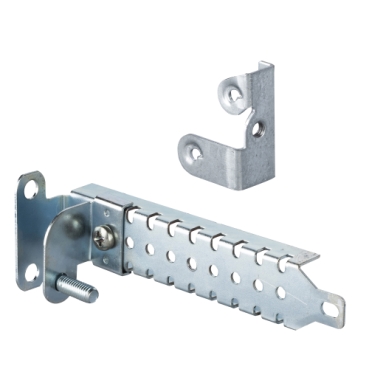

Schneider Electric NSYSDCR200
Set of step slides made of treated steel. D is200 mm. Compatible with Spacial CRN, S3D, S3X, S3CM. Mounting on sides of enclosure. Fixing by element, or on backstuds (welded). In depth of the plate in…
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Set of step slides made of treated steel. D is200 mm. Compatible with Spacial CRN, S3D, S3X, S3CM. Mounting on sides of enclosure. Fixing by element, or on backstuds (welded). In depth of the plate in steps of 12.5 mm adjustment. Galvanised steel. Set of 4.
Specification
| Category |
Mounting accessory |
|---|---|
| Product or component type |
Step slide |
| Range compatibility |
PanelSeT CRN, PanelSeT S3D, PanelSeT S3CM, PanelSeT S3X |
| Application |
Multi-purpose |
| Nominal dimensions of the housing |
– |
| Mounting location |
Sides of enclosure |
| Device composition |
4 sliding rails, 4 sliding support, fixing elements |
| Quantity per set |
Set of 1 |
| Material |
Galvanised steel |
| Fixing mode |
By fixing element, On backstuds (welded in the enclosure) |
| Adjustment |
In depth of the plate or other accessories in steps of 12.5 mm |
| Depth |
Nominal : 200 mm |
| Net weight |
0.5 kg |
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
6.000 cm |
| Package 1 Width |
13.500 cm |
| Package 1 Length |
17.000 cm |
| Package 1 Weight |
500.000 g |
| Unit Type of Package 2 |
PAM |
| Number of Units in Package 2 |
200 |
| Package 2 Height |
46.000 cm |
| Package 2 Width |
100.000 cm |
| Package 2 Length |
120.000 cm |
| Package 2 Weight |
149.400 kg |
| Warranty |
18 months |
