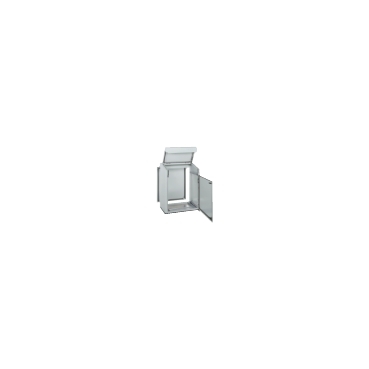

Schneider Electric NSYSD10R
PanelSeT SD Compact control desk with rear panel – H1000xW1000xD597 – IP55
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Specification
| Range |
PanelSeT |
|---|---|
| Product name |
PanelSeT SD |
| Enclosure type |
Multi-purpose |
| Category |
Monobloc control desk with rear panel |
| Nominal height |
1000 mm |
| Nominal width |
1000 mm |
| Nominal depth |
597 mm |
| Product installation |
Floor-standing |
| Device composition |
1 structure, 2 lock: door, 4 adjustment rail, 1 cable gland plate, 2 pneumatic stay: desk lid, 2 door, 1 rear panel, 5 top plate: on top of control desk |
| Body type |
Single piece structure folded and welded |
| Door type |
Plain |
| Number of doors |
Front: 2 door(s) |
| Door opening side |
Reversible 120 ° door |
| Lock type |
2 points lock, 3 mm double-bar |
| Mounting plate description |
Without mounting plate |
| Type of gland plate |
1 entry plate |
| Accessibility for operation |
Rear, Front |
| Removable parts |
Door by hinges, Desk lid by hinges, Cable gland plate by clipping screws, Blanking covers by screws, Rear panel by screws |
| Material |
Body: steel |
| Surface finish |
Epoxy-polyester powder |
| Thickness |
1.5 mm |
| Colour |
Grey (RAL 7035) |
| Standards |
IEC 62208 |
| IP degree of protection |
IP55 conforming to IEC 60529 |
| IK degree of protection |
IK10 conforming to IEC 62262 |
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
66.000 cm |
| Package 1 Width |
102.000 cm |
| Package 1 Length |
116.000 cm |
| Package 1 Weight |
74.000 kg |
| Unit Type of Package 2 |
PAM |
| Number of Units in Package 2 |
2 |
| Package 2 Height |
130.000 cm |
| Package 2 Width |
100.000 cm |
| Package 2 Length |
120.000 cm |
| Package 2 Weight |
172.000 kg |
| Warranty |
18 months |
