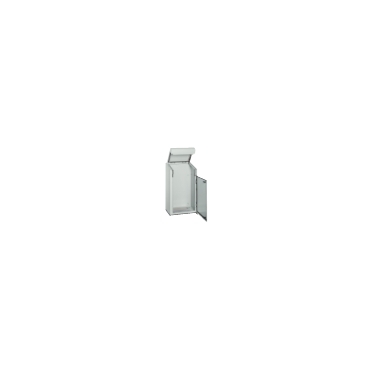

Schneider Electric NSYSD10
PanelSeT SD Compact control desk w/o mounting plate – H1000xW1000xD466 – IP55
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Specification
| Range | PanelSeT |
|---|---|
| Product name | PanelSeT SD |
| Enclosure type | Multi-purpose |
| Category | Monobloc control desk |
| Nominal height | 1000 mm |
| Nominal width | 1000 mm |
| Nominal depth | 466 mm |
| Product installation | Floor-standing |
| Device composition | 1 structure, 2 lock: door, 4 adjustment rail, 1 cable gland plate, 2 pneumatic stay: desk lid, 2 door |
| Body type | Single piece structure folded and welded |
| Door type | Plain |
| Number of doors | Front: 2 door(s) |
| Door opening side | Reversible 120 ° door |
| Lock type | 2 points lock, 3 mm double-bar |
| Mounting plate description | Without mounting plate |
| Type of gland plate | 1 entry plate |
| Accessibility for operation | Front |
| Removable parts | Door by hinges, Desk lid by hinges, Cable gland plate by clipping screws |
| Material | Body: steel |
| Surface finish | Epoxy-polyester powder |
| Thickness | 1.5 mm |
| Standards | IEC 62208 |
| IP degree of protection | IP55 conforming to IEC 60529 |
| IK degree of protection | IK10 conforming to IEC 62262 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 48.000 cm |
| Package 1 Width | 101.000 cm |
| Package 1 Length | 115.000 cm |
| Package 1 Weight | 57.000 kg |
| Unit Type of Package 2 | PAM |
| Number of Units in Package 2 | 2 |
| Package 2 Height | 130.000 cm |
| Package 2 Width | 100.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 149.000 kg |
| Warranty | 18 months |
