Schneider Electric NSYSBX20308
Spacial SBX stainless steel 304L industrial box is designed for a multi-purpose application It is certified by BV, BVM, and UL and is perfect for use in harsh environments This box has a nominal heigh…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

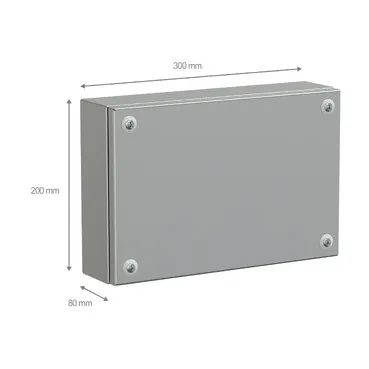

Spacial SBX stainless steel 304L industrial box is designed for a multi-purpose application It is certified by BV, BVM, and UL and is perfect for use in harsh environments This box has a nominal height, width and depth of 200mm, 300mm and 80mm respectively The box is made with a Scotch-Brite® brushed surface finish and consists of 4 cover screw, a cover and a body It has a captive screw PZ2 outside the sealed area The cover can be removed for maintenance purposes The box is wall mounted and has a flat face box enclosure type with a half turn metal screw cover fixing The net weight of the enclosure is 2,2kg It is protected by IK10 (IEC62262) and has an IP66 rating (IEC60529) The box can withstand temperatures between -35 to 80 °C
Specification
| Range |
PanelSeT |
|---|---|
| Product name |
PanelSeT SBX |
| Device application |
Multi-purpose |
| Category |
Industrial box |
| Device short name |
SBX |
| Enclosure type |
Flat face box |
| Enclosure nominal height |
200 mm |
| Enclosure nominal width |
300 mm |
| Enclosure nominal depth |
80 mm |
| Enclosure mounting |
Wall mounted |
| Device composition |
4 cover screw, 1 cover, 1 body |
| Body type |
Single piece body folded and welded |
| Type of front cover |
Plain door |
| Cover fixing |
Half turn metal screw |
| Lock type |
Captive screw PZ2 outside sealed area |
| Removable parts |
Cover by captive screws |
| Material |
Stainless steel 304L |
| Surface finish |
Scotch-Brite® brushed |
| Standards |
IEC 62208, UL, CUL |
| Product certifications |
BV, BVM, UL |
| IP degree of protection |
IP66 conforming to IEC 60529 |
| IK degree of protection |
IK10 conforming to IEC 62262 |
| Ambient air temperature for storage |
-35…60 °C |
| Operating temperature |
-35…80 °C |
| Net weight |
2.2 kg |
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
10.500 cm |
| Package 1 Width |
21.500 cm |
| Package 1 Length |
31.000 cm |
| Package 1 Weight |
2.304 kg |
| Unit Type of Package 2 |
P12 |
| Number of Units in Package 2 |
112 |
| Package 2 Height |
120.000 cm |
| Package 2 Width |
80.000 cm |
| Package 2 Length |
120.000 cm |
| Package 2 Weight |
269.000 kg |
| Warranty |
18 months |
