Schneider Electric NSYS3X4315
Spacial S3X is a stainless steel 304L wall-mounting enclosure for a multi-purpose application and resistance to corrosion It is designed for use in harsh environments, it can withstand high impact due…
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

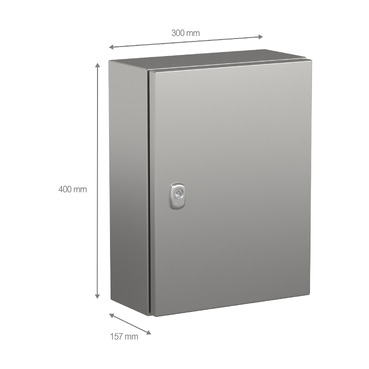

Spacial S3X is a stainless steel 304L wall-mounting enclosure for a multi-purpose application and resistance to corrosion It is designed for use in harsh environments, it can withstand high impact due its IK10 (IEC62262) and it has a high resistance to dust and water with an IP66 rating (IEC60529) This enclosure has a nominal height, width and depth of 400mm, 300mm and 150mm respectively The enclosure is made with Scotch-Brite® brushed surface finish The enclosure consists of a body, a plain door and a lock The door can be opened up to 120°, allowing easy access to the equipment inside It is possible to change the opening side of the door (reversible) The door has a 3mm double-bar lock insert The door can be removed for maintenance purposes The net weight of the enclosure is 5kg
Specification
| Range |
Spacial |
|---|---|
| Product name |
Spacial S3X |
| Enclosure type |
Multi-purpose |
| Category |
Compact enclosure |
| Nominal height |
400 mm |
| Nominal width |
300 mm |
| Nominal depth |
150 mm |
| Product installation |
Wall-mounting |
| Device composition |
1 body, 1 lock: door, 1 door |
| Body type |
Single piece body, cross-shaped structure, Gutter shaped front rail |
| Door type |
Plain |
| Number of doors |
Front face: 1 door(s) |
| Door opening side |
Reversible (120 °) |
| Lock type |
3 mm double-bar lock |
| Mounting plate description |
Without mounting plate |
| Type of gland plate |
Without gland plate |
| Accessibility for operation |
Front |
| Removable parts |
Door by hinges |
| Material |
Body and door: stainless steel 304L, Lock: zamak, Hinge: stainless steel |
| Surface finish |
Body and door: Scotch-Brite® brushed, Lock: chromium plated |
| Net weight |
5 kg |
| Standards |
IEC 62208, UL, CUL |
| Product certifications |
UL 508 type A, CAN/CSA 22 |
| IP degree of protection |
IP66 conforming to IEC 60529 |
| IK degree of protection |
IK10 conforming to IEC 62262 |
| Environmental characteristic |
Corrosive, Specific hygiene |
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
17.000 cm |
| Package 1 Width |
31.500 cm |
| Package 1 Length |
42.000 cm |
| Package 1 Weight |
4.900 kg |
| Unit Type of Package 2 |
PAM |
| Number of Units in Package 2 |
78 |
| Package 2 Height |
182.000 cm |
| Package 2 Width |
100.000 cm |
| Package 2 Length |
120.000 cm |
| Package 2 Weight |
396.200 kg |
| Warranty |
18 months |
