Schneider Electric NSYS3X3215H

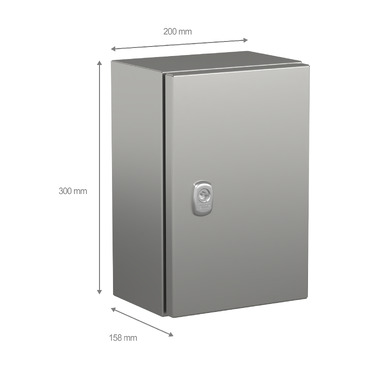

Wall mounted enclosure, PanelSeT S3X, stainless steel 316L, plain door, 300x200x150mm, IP66
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Specification
| Range |
Spacial |
|---|---|
| Product name |
Spacial S3X |
| Enclosure type |
Multi-purpose |
| Category |
Compact enclosure |
| Nominal height |
300 mm |
| Nominal width |
200 mm |
| Nominal depth |
150 mm |
| Product installation |
Wall-mounting |
| Device composition |
1 body, 1 lock: door, 1 door |
| Body type |
Single piece body, cross-shaped structure, Gutter shaped front rail |
| Door type |
Plain |
| Number of doors |
Front face: 1 door(s) |
| Door opening side |
Reversible (120 °) |
| Lock type |
3 mm double-bar lock |
| Mounting plate description |
Without mounting plate |
| Type of gland plate |
Without gland plate |
| Accessibility for operation |
Front |
| Removable parts |
Door by hinges |
| Material |
Lock: zamak, Hinge: stainless steel, Body and door: stainless steel 316L |
| Surface finish |
Body and door: Scotch-Brite® brushed, Lock: chromium plated |
| Net weight |
3.12 kg |
| Standards |
IEC 62208, UL, CUL |
| Product certifications |
UL 508 type A, CAN/CSA 22 |
| IP degree of protection |
IP66 conforming to IEC 60529 |
| IK degree of protection |
IK10 conforming to IEC 62262 |
| Environmental characteristic |
Corrosive, Specific hygiene |
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
17.000 cm |
| Package 1 Width |
21.500 cm |
| Package 1 Length |
32.000 cm |
| Package 1 Weight |
3.120 kg |
| Unit Type of Package 2 |
PAM |
| Number of Units in Package 2 |
168 |
| Package 2 Height |
180.000 cm |
| Package 2 Width |
100.000 cm |
| Package 2 Length |
120.000 cm |
| Package 2 Weight |
535.000 kg |
| Warranty |
18 months |
