Schneider Electric NSYS3DB4815
Spacial S3DB steel wall-mounting enclosure for a terminal application is designed to equip with terminals in harsh environments It has a nominal height, width and depth of 400mm, 800mm and 150mm respe…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

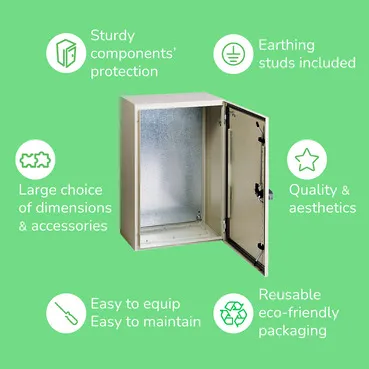

Spacial S3DB steel wall-mounting enclosure for a terminal application is designed to equip with terminals in harsh environments It has a nominal height, width and depth of 400mm, 800mm and 150mm respectively The enclosure is made of steel in grey color (RAL7035) with an epoxy-polyester powder surface finish The enclosure consists of a body, a plain door and a lock The door can be opened from the front up to 180°, allowing easy access to the equipment inside It is possible to change the opening side of the door (reversible) The door has a three-point lock with a 3mm double-bar insert
Specification
| Range |
PanelSeT |
|---|---|
| Product name |
PanelSeT S3DB |
| Application |
Terminal application |
| Category |
Compact enclosure |
| Enclosure nominal height |
400 mm |
| Enclosure nominal width |
800 mm |
| Enclosure nominal depth |
150 mm |
| Door type |
Plain |
| Mounting plate description |
Without mounting plate |
| Type of gland plate |
Without gland plate |
| Installation accessory type |
Wall-mounting, Horizontal or vertical position |
| Product destination |
For equipping with terminal |
| Device composition |
1 body, 1 door, 1 lock |
| Body type |
Gutter-shaped front rail double sheet thickness, Single piece body |
| Number of doors |
Front face: 1 door(s) |
| Door opening side |
Reversible (180 °) |
| Lock type |
3 mm double-bar lock |
| Accessibility for operation |
Front |
| Removable parts |
Door by hinges |
| Material |
Steel |
| Surface finish |
Epoxy-polyester powder |
| Colour |
Grey (RAL 7035) |
| Standards |
IEC 62208 |
| Product certifications |
BV, DNV, UL, cUL, GL |
| Net weight |
12.2 kg |
| NEMA degree of protection |
NEMA 4X/13 |
| IK degree of protection |
IK10 conforming to IEC 62262 |
| IP degree of protection |
IP66 conforming to IEC 60529 |
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
19.000 cm |
| Package 1 Width |
42.000 cm |
| Package 1 Length |
81.500 cm |
| Package 1 Weight |
12.388 kg |
| Unit Type of Package 2 |
PAM |
| Number of Units in Package 2 |
24 |
| Package 2 Height |
181.000 cm |
| Package 2 Width |
100.000 cm |
| Package 2 Length |
120.000 cm |
| Package 2 Weight |
310.000 kg |
| Warranty |
18 months |
