Schneider Electric NSYS3DB25515

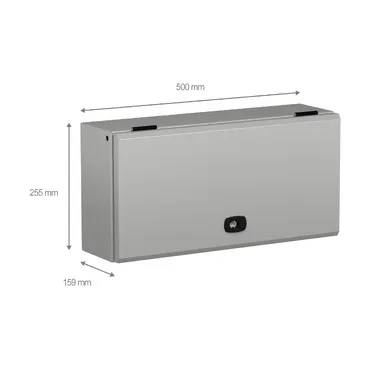

Spacial S3DB compact enclosure. H is250xW is500xD is150 mm. For equipping with terminal. No mounting plate or cable gland included. 1 front face/door. Wall mounting install (Horz/Vert). Gutter-shaped…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Spacial S3DB compact enclosure. H is250xW is500xD is150 mm. For equipping with terminal. No mounting plate or cable gland included. 1 front face/door. Wall mounting install (Horz/Vert). Gutter-shaped front rail double sheet thickness particularity. Steel made, epoxy-polyester powder finish. Protection IP 66, IK10, Grey RAL 7035. Certifications is BV, CUL, DNV, GL, LR, UL.
Specification
| Range |
PanelSeT |
|---|---|
| Product name |
PanelSeT S3DB |
| Application |
Terminal application |
| Category |
Compact enclosure |
| Enclosure nominal height |
250 mm |
| Enclosure nominal width |
500 mm |
| Enclosure nominal depth |
150 mm |
| Door type |
Plain |
| Mounting plate description |
Without mounting plate |
| Type of gland plate |
Without gland plate |
| Installation accessory type |
Wall-mounting, Horizontal or vertical position |
| Product destination |
For equipping with terminal |
| Device composition |
1 body, 1 door, 1 lock |
| Body type |
Gutter-shaped front rail double sheet thickness, Single piece body |
| Number of doors |
Front face: 1 door(s) |
| Door opening side |
Reversible (180 °) |
| Lock type |
3 mm double-bar lock |
| Accessibility for operation |
Front |
| Removable parts |
Door by hinges |
| Material |
Steel |
| Surface finish |
Epoxy-polyester powder |
| Colour |
Grey (RAL 7035) |
| Standards |
IEC 62208 |
| Product certifications |
cUL, BV, GL, DNV, UL |
| Net weight |
5.218 kg |
| NEMA degree of protection |
NEMA 4X/13 |
| IK degree of protection |
IK10 conforming to IEC 62262 |
| IP degree of protection |
IP66 conforming to IEC 60529 |
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
19.500 cm |
| Package 1 Width |
26.500 cm |
| Package 1 Length |
51.000 cm |
| Package 1 Weight |
5.218 kg |
| Unit Type of Package 2 |
PAM |
| Number of Units in Package 2 |
70 |
| Package 2 Height |
205.000 cm |
| Package 2 Width |
100.000 cm |
| Package 2 Length |
120.000 cm |
| Package 2 Weight |
378.000 kg |
| Warranty |
18 months |
