Schneider Electric NSYS3DB25315
Spacial S3DB steel wall-mounting enclosure for a terminal application It is certified by GL, BV, UL, LR, cUL and DNV, ensuring its quality and reliability The enclosure has a nominal height, width and…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

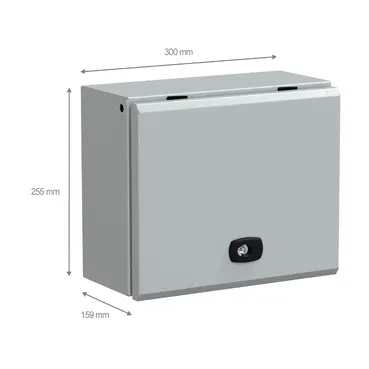

Spacial S3DB steel wall-mounting enclosure for a terminal application It is certified by GL, BV, UL, LR, cUL and DNV, ensuring its quality and reliability The enclosure has a nominal height, width and depth of 250mm, 300mm and 150mm respectively It is made of steel in grey color (RAL7035) with an epoxy-polyester powder surface finish The enclosure consists of a body, a plain door and a lock The door can be opened from the front up to 180°, allowing easy access to the equipment inside It is possible to change the opening side of the door (reversible)
Specification
| Range |
PanelSeT |
|---|---|
| Product name |
PanelSeT S3DB |
| Application |
Terminal application |
| Category |
Compact enclosure |
| Enclosure nominal height |
250 mm |
| Enclosure nominal width |
300 mm |
| Enclosure nominal depth |
150 mm |
| Door type |
Plain |
| Mounting plate description |
Without mounting plate |
| Type of gland plate |
Without gland plate |
| Installation accessory type |
Wall-mounting, Horizontal or vertical position |
| Product destination |
For equipping with terminal |
| Device composition |
1 body, 1 door, 1 lock |
| Body type |
Gutter-shaped front rail double sheet thickness, Single piece body |
| Number of doors |
Front face: 1 door(s) |
| Door opening side |
Reversible (180 °) |
| Lock type |
3 mm double-bar lock |
| Accessibility for operation |
Front |
| Removable parts |
Door by hinges |
| Material |
Steel |
| Surface finish |
Epoxy-polyester powder |
| Colour |
Grey (RAL 7035) |
| Standards |
IEC 62208, UL, CUL |
| Product certifications |
GL, BV, UL, cUL, DNV |
| Net weight |
3.374 kg |
| NEMA degree of protection |
NEMA 4X/13 |
| IK degree of protection |
IK10 conforming to IEC 62262 |
| IP degree of protection |
IP66 conforming to IEC 60529 |
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
19.500 cm |
| Package 1 Width |
26.500 cm |
| Package 1 Length |
31.500 cm |
| Package 1 Weight |
3.374 kg |
| Unit Type of Package 2 |
PAM |
| Number of Units in Package 2 |
50 |
| Package 2 Height |
120.000 cm |
| Package 2 Width |
100.000 cm |
| Package 2 Length |
120.000 cm |
| Package 2 Weight |
184.000 kg |
| Warranty |
18 months |
