Schneider Electric NSYS3D8625

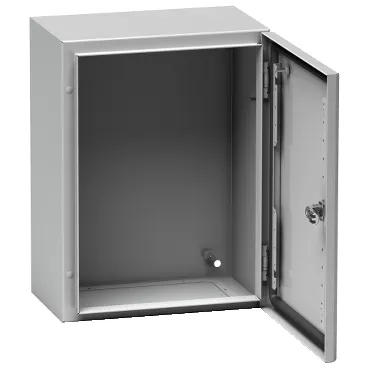

Spacial S3D is a monobloc wall-mounting enclosure designed for multi-purpose applications It is made of steel with an epoxy-polyester powder finish and is grey-coloured (RAL 7035) This enclosure has a…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Spacial S3D is a monobloc wall-mounting enclosure designed for multi-purpose applications It is made of steel with an epoxy-polyester powder finish and is grey-coloured (RAL 7035) This enclosure has a nominal height, width and depth of 800mm, 600mm and 250mm, respectively The enclosure has a single door with a three-point lock and a 3mm double-bar insert The door is reversible, allowing it to be opened up to 120° for easy access to the equipment inside It has a NEMA 4X/13 rating and an IP66 (IEC 60529) rating for dust and water resistance Furthermore, it has an IK10 (IEC 62262) rating for high impact resistance The enclosure consists of a body, a door, a lock, and a cable gland plate The door and the cable gland plate can be removed for maintenance purposes
Specification
| Range | PanelSeT |
|---|---|
| Product name | PanelSeT S3D |
| Application | Multi-purpose |
| Category | Compact enclosure |
| Enclosure nominal height | 800 mm |
| Enclosure nominal width | 600 mm |
| Enclosure nominal depth | 250 mm |
| Door type | Plain |
| Mounting plate description | Without mounting plate |
| Type of gland plate | Standard |
| Installation accessory type | Wall-mounting |
| Device composition | 1 body, 1 door, 1 lock, 1 cable gland plate |
| Body type | Single piece body, Gutter-shaped front rail double sheet thickness |
| Number of doors | Front face: 1 door(s) |
| Door opening side | Reversible (120 °) |
| Lock type | 3 points lock, 3 mm double-bar |
| Accessibility for operation | Front |
| Removable parts | Door by hinges, Cable gland plate by screws |
| Material | Steel |
| Surface finish | Epoxy-polyester powder |
| Colour | Grey (RAL 7035) |
| Standards | IEC 62208, UL, CUL |
| Product certifications | cUL, BV, GL, UL, DNV |
| Net weight | 20.2 kg |
| NEMA degree of protection | NEMA 4X/13 |
| IK degree of protection | IK10 conforming to IEC 62262 |
| IP degree of protection | IP66 conforming to IEC 60529 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 29.500 cm |
| Package 1 Width | 61.000 cm |
| Package 1 Length | 82.000 cm |
| Package 1 Weight | 20.200 kg |
| Unit Type of Package 2 | PAM |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 177.000 cm |
| Package 2 Width | 100.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 257.500 kg |
| Coverage | Core product |
| Warranty | 18 months |
