Schneider Electric NSYS3D8620T

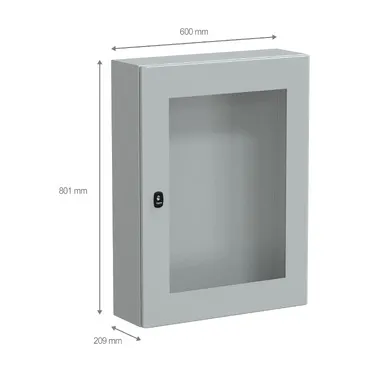

Spacial S3D steel wall-mounting enclosure is designed for multi-purpose applications in harsh environments It has a nominal height, width and depth of 800mm, 600mm and 200mm, respectively The enclosur…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Spacial S3D steel wall-mounting enclosure is designed for multi-purpose applications in harsh environments It has a nominal height, width and depth of 800mm, 600mm and 200mm, respectively The enclosure is grey-coloured (RAL7035) with an epoxy-polyester powder surface finish It has a single piece body and a gutter-shaped front rail double sheet thickness for high impact resistance It is certified by GL, BV, UL, DNV, cUL and LR and has a NEMA 4X/13 rating The enclosure consists of a body, a glazed door, a lock and a cable gland plate The door can be opened up to 120°, allowing easy access to the equipment inside Furthermore, it is possible to change the opening side of the door (reversible) The door has a three-point lock with a 3mm double-bar insert
Specification
| Range | PanelSeT |
|---|---|
| Product name | PanelSeT S3D |
| Application | Multi-purpose |
| Category | Compact enclosure |
| Enclosure nominal height | 800 mm |
| Enclosure nominal width | 600 mm |
| Enclosure nominal depth | 200 mm |
| Door type | Glazed |
| Mounting plate description | Without mounting plate |
| Type of gland plate | Standard |
| Installation accessory type | Wall-mounting |
| Device composition | 1 body, 1 door, 1 lock, 1 cable gland plate |
| Body type | Single piece body, Gutter-shaped front rail double sheet thickness |
| Number of doors | Front face: 1 door(s) |
| Door opening side | Reversible (120 °) |
| Lock type | 3 points lock, 3 mm double-bar |
| Accessibility for operation | Front |
| Removable parts | Door by hinges, Cable gland plate by screws |
| Material | Body: steel, Door: steel and security glass |
| Surface finish | Epoxy-polyester powder |
| Colour | Grey (RAL 7035) |
| Standards | IEC 62208, UL, CUL |
| Product certifications | GL, BV, UL, DNV, cUL |
| Net weight | 21.5 kg |
| NEMA degree of protection | NEMA 4X/13 |
| IK degree of protection | IK08 conforming to IEC 62262 |
| IP degree of protection | IP66 conforming to IEC 60529 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 24.500 cm |
| Package 1 Width | 60.500 cm |
| Package 1 Length | 81.000 cm |
| Package 1 Weight | 18.583 kg |
| Unit Type of Package 2 | PAM |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 177.000 cm |
| Package 2 Width | 100.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 236.000 kg |
| Coverage | Core product |
| Warranty | 18 months |
