Schneider Electric NSYS3D7525
Spacial S3D wall-mounting enclosure is a multi-purpose enclosure made of steel and designed for use in harsh environments It is certified by BV, UL, DNV, cUL, GL, and LR standards and is grey-coloured…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

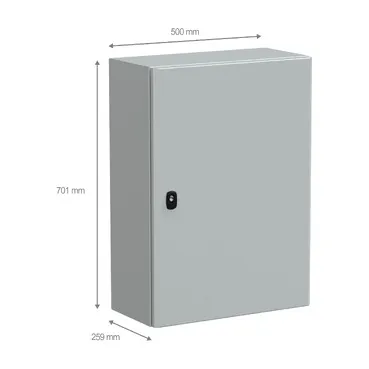

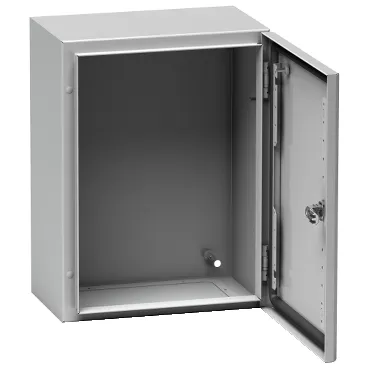

Spacial S3D wall-mounting enclosure is a multi-purpose enclosure made of steel and designed for use in harsh environments It is certified by BV, UL, DNV, cUL, GL, and LR standards and is grey-coloured (RAL 7035) with an epoxy-polyester powder surface finish The enclosure has a nominal height, width, and depth of 700mm, 500mm and 250mm, respectively The enclosure consists of a body, one door, one lock, and one cable gland plate The door can be opened up to 120°, allowing easy access to the equipment inside Furthermore, it is possible to change the opening side of the door (reversible) The door has a three-point lock with a 3mm double-bar insert The door and the cable gland plate can be removed for maintenance purposes The net weight of the enclosure is 15kg
Specification
| Range |
PanelSeT |
|---|---|
| Product name |
PanelSeT S3D |
| Application |
Multi-purpose |
| Category |
Compact enclosure |
| Enclosure nominal height |
700 mm |
| Enclosure nominal width |
500 mm |
| Enclosure nominal depth |
250 mm |
| Door type |
Plain |
| Mounting plate description |
Without mounting plate |
| Type of gland plate |
Standard |
| Installation accessory type |
Wall-mounting |
| Device composition |
1 body, 1 door, 1 lock, 1 cable gland plate |
| Body type |
Single piece body, Gutter-shaped front rail double sheet thickness |
| Number of doors |
Front face: 1 door(s) |
| Door opening side |
Reversible (120 °) |
| Lock type |
3 points lock, 3 mm double-bar |
| Accessibility for operation |
Front |
| Removable parts |
Door by hinges, Cable gland plate by screws |
| Material |
Steel |
| Surface finish |
Epoxy-polyester powder |
| Colour |
Grey (RAL 7035) |
| Standards |
IEC 62208, UL, CUL |
| Product certifications |
BV, UL, DNV, cUL, GL |
| Net weight |
15 kg |
| NEMA degree of protection |
NEMA 4X/13 |
| IK degree of protection |
IK10 conforming to IEC 62262 |
| IP degree of protection |
IP66 conforming to IEC 60529 |
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
29.500 cm |
| Package 1 Width |
51.500 cm |
| Package 1 Length |
72.000 cm |
| Package 1 Weight |
15.014 kg |
| Unit Type of Package 2 |
P12 |
| Number of Units in Package 2 |
12 |
| Package 2 Height |
157.500 cm |
| Package 2 Width |
80.000 cm |
| Package 2 Length |
120.000 cm |
| Package 2 Weight |
192.800 kg |
| Coverage |
Core product |
| Warranty |
18 months |
