Schneider Electric NSYS3D6630
Spacial S3D is a wall-mounting enclosure for multi-purpose applications It is made of steel with an epoxy-polyester powder surface finish and is grey in colour (RAL 7035) The enclosure has a nominal h…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

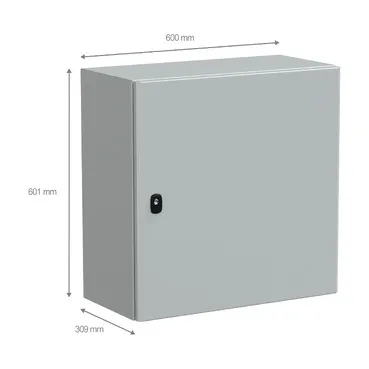

Spacial S3D is a wall-mounting enclosure for multi-purpose applications It is made of steel with an epoxy-polyester powder surface finish and is grey in colour (RAL 7035) The enclosure has a nominal height, width and depth of 600mm, 600mm and 300mm, respectively It is certified by UL, cUL, GL, LR, BV and DNV and has a NEMA 4X/13 rating It is also IK10 (IEC62262) rated, meaning it can withstand high impacts, and has an IP66 (IEC60529) rating, making it dust and water-resistant The enclosure consists of a body, one plain door, one lock and one cable gland plate The door can be opened up to 120° and can be reversed, allowing easy access to the equipment inside It has a three-point lock with a 3mm double-bar insert The door and the cable gland plate can be removed for maintenance purposes
Specification
| Range |
PanelSeT |
|---|---|
| Product name |
PanelSeT S3D |
| Application |
Multi-purpose |
| Category |
Compact enclosure |
| Enclosure nominal height |
600 mm |
| Enclosure nominal width |
600 mm |
| Enclosure nominal depth |
300 mm |
| Door type |
Plain |
| Mounting plate description |
Without mounting plate |
| Type of gland plate |
Standard |
| Installation accessory type |
Wall-mounting |
| Device composition |
1 body, 1 door, 1 lock, 1 cable gland plate |
| Body type |
Gutter-shaped front rail double sheet thickness, Single piece body |
| Number of doors |
Front face: 1 door(s) |
| Door opening side |
Reversible (120 °) |
| Lock type |
3 points lock, 3 mm double-bar |
| Accessibility for operation |
Front |
| Removable parts |
Door by hinges, Cable gland plate by screws |
| Material |
Steel |
| Surface finish |
Epoxy-polyester powder |
| Colour |
Grey (RAL 7035) |
| Standards |
IEC 62208, UL, CUL |
| Product certifications |
UL, cUL, GL, BV, DNV |
| Net weight |
16.57 kg |
| NEMA degree of protection |
NEMA 4X/13 |
| IK degree of protection |
IK10 conforming to IEC 62262 |
| IP degree of protection |
IP66 conforming to IEC 60529 |
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
35.000 cm |
| Package 1 Width |
61.500 cm |
| Package 1 Length |
62.000 cm |
| Package 1 Weight |
16.500 kg |
| Unit Type of Package 2 |
PAM |
| Number of Units in Package 2 |
12 |
| Package 2 Height |
201.000 cm |
| Package 2 Width |
100.000 cm |
| Package 2 Length |
120.000 cm |
| Package 2 Weight |
214.000 kg |
| Coverage |
Core product |
| Warranty |
18 months |
