Schneider Electric NSYS3D6620T
Spacial S3D is a wall-mounting steel enclosure designed for multi-purpose applications It has a nominal height, width and depth of 600mm, 600mm and 200mm, respectively The enclosure is grey-coloured (…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

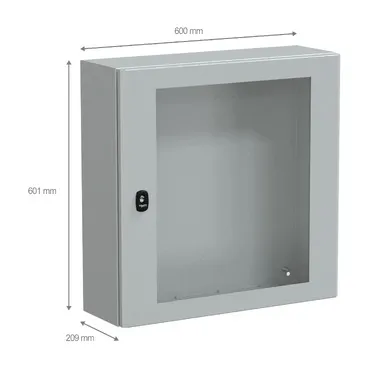

Spacial S3D is a wall-mounting steel enclosure designed for multi-purpose applications It has a nominal height, width and depth of 600mm, 600mm and 200mm, respectively The enclosure is grey-coloured (RAL7035) with an epoxy-polyester powder surface finish and is certified to meet cUL, DNV, UL, LR, BV and GL standards It has an IK08 (IEC62262) rating and an IP66 (IEC60529) rating, making it highly resistant to dust, water and impact The enclosure consists of a body, one glazed door, one lock and one cable gland plate The door can be opened up to 120°, allowing easy access to the equipment inside Furthermore, it is possible to change the opening side of the door (reversible) The door has a three-point lock with a 3mm double-bar insert The door and the cable gland plate can be removed for maintenance purposes
Specification
| Range |
PanelSeT |
|---|---|
| Product name |
PanelSeT S3D |
| Application |
Multi-purpose |
| Category |
Compact enclosure |
| Enclosure nominal height |
600 mm |
| Enclosure nominal width |
600 mm |
| Enclosure nominal depth |
200 mm |
| Door type |
Glazed |
| Mounting plate description |
Without mounting plate |
| Type of gland plate |
Standard |
| Installation accessory type |
Wall-mounting |
| Device composition |
1 body, 1 door, 1 lock, 1 cable gland plate |
| Body type |
Gutter-shaped front rail double sheet thickness, Single piece body |
| Number of doors |
Front face: 1 door(s) |
| Door opening side |
Reversible (120 °) |
| Lock type |
3 points lock, 3 mm double-bar |
| Accessibility for operation |
Front |
| Removable parts |
Door by hinges, Cable gland plate by screws |
| Material |
Body: steel, Door: steel and security glass |
| Surface finish |
Epoxy-polyester powder |
| Colour |
Grey (RAL 7035) |
| Standards |
IEC 62208, UL, CUL |
| Product certifications |
cUL, DNV, UL, BV, GL |
| Net weight |
14 kg |
| Electromagnetic compatibility |
Electromagnetic field immunity test |
| NEMA degree of protection |
NEMA 4X/13 |
| IK degree of protection |
IK08 conforming to IEC 62262 |
| IP degree of protection |
IP66 conforming to IEC 60529 |
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
24.000 cm |
| Package 1 Width |
61.000 cm |
| Package 1 Length |
61.500 cm |
| Package 1 Weight |
14.270 kg |
| Unit Type of Package 2 |
PAM |
| Number of Units in Package 2 |
18 |
| Package 2 Height |
199.000 cm |
| Package 2 Width |
100.000 cm |
| Package 2 Length |
120.000 cm |
| Package 2 Weight |
270.000 kg |
| Coverage |
Core product |
| Warranty |
18 months |
