Schneider Electric NSYS3D6620
Spacial S3D steel wall-mounting enclosure for multi-purpose applications is designed for use in harsh environments It has a nominal height, width and depth of 600mm, 600mm and 200mm, respectively The…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

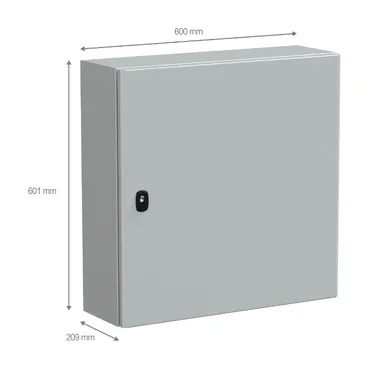

Spacial S3D steel wall-mounting enclosure for multi-purpose applications is designed for use in harsh environments It has a nominal height, width and depth of 600mm, 600mm and 200mm, respectively The enclosure is grey-coloured (RAL7035) with an epoxy-polyester powder surface finish The enclosure consists of a body, one door, one cable gland plate and a lock The door can be opened up to 120°, allowing easy access to the equipment inside Furthermore, it is possible to change the opening side of the door (reversible) The door has a three-point lock with a 3mm double-bar insert The door and the cable gland plate can be removed for maintenance purposes The net weight of the enclosure is 14kg The enclosure is certified with UL, BV, LR, GL, cUL and DNV standards
Specification
| Range |
PanelSeT |
|---|---|
| Product name |
PanelSeT S3D |
| Application |
Multi-purpose |
| Category |
Compact enclosure |
| Enclosure nominal height |
600 mm |
| Enclosure nominal width |
600 mm |
| Enclosure nominal depth |
200 mm |
| Door type |
Plain |
| Mounting plate description |
Without mounting plate |
| Type of gland plate |
Standard |
| Installation accessory type |
Wall-mounting |
| Device composition |
1 body, 1 door, 1 lock, 1 cable gland plate |
| Body type |
Single piece body, Gutter-shaped front rail double sheet thickness |
| Number of doors |
Front face: 1 door(s) |
| Door opening side |
Reversible (120 °) |
| Lock type |
3 points lock, 3 mm double-bar |
| Accessibility for operation |
Front |
| Removable parts |
Door by hinges, Cable gland plate by screws |
| Material |
Steel |
| Surface finish |
Epoxy-polyester powder |
| Colour |
Grey (RAL 7035) |
| Standards |
IEC 62208, UL, CUL |
| Product certifications |
UL, BV, GL, cUL, DNV |
| Net weight |
14 kg |
| NEMA degree of protection |
NEMA 4X/13 |
| IK degree of protection |
IK10 conforming to IEC 62262 |
| IP degree of protection |
IP66 conforming to IEC 60529 |
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
25.000 cm |
| Package 1 Width |
61.000 cm |
| Package 1 Length |
61.500 cm |
| Package 1 Weight |
14.000 kg |
| Unit Type of Package 2 |
PAM |
| Number of Units in Package 2 |
18 |
| Package 2 Height |
200.000 cm |
| Package 2 Width |
100.000 cm |
| Package 2 Length |
120.000 cm |
| Package 2 Weight |
267.000 kg |
| Coverage |
Core product |
| Warranty |
18 months |
