Schneider Electric NSYS3D6425P
Spacial S3D steel wall-mounting enclosure for multi-purpose applications is designed to withstand harsh environments It has a nominal height, width and depth of 600mm, 400mm and 250mm, respectively Th…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

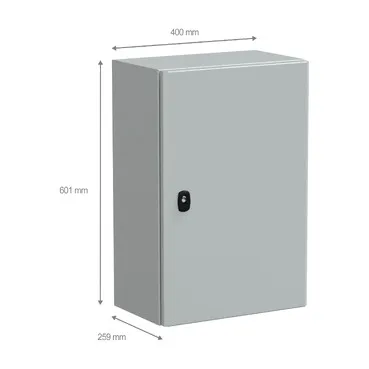

Spacial S3D steel wall-mounting enclosure for multi-purpose applications is designed to withstand harsh environments It has a nominal height, width and depth of 600mm, 400mm and 250mm, respectively The enclosure is grey-coloured (RAL7035) with an epoxy-polyester powder surface finish The enclosure consists of a body, a galvanised steel mounting plate, a plain door with a lock and a cable gland plate The door can be opened up to 120°, allowing easy access to the equipment inside Furthermore, it is possible to change the opening side of the door (reversible)
Specification
| Range | PanelSeT |
|---|---|
| Product name | PanelSeT S3D |
| Application | Multi-purpose |
| Category | Compact enclosure |
| Enclosure nominal height | 600 mm |
| Enclosure nominal width | 400 mm |
| Enclosure nominal depth | 250 mm |
| Door type | Plain |
| Mounting plate description | Plain |
| Type of gland plate | Standard |
| Installation accessory type | Wall-mounting |
| Device composition | 1 body, 1 mounting plate, 1 door with lock, 1 cable gland plate |
| Body type | Single piece body, Gutter-shaped front rail double sheet thickness |
| Number of doors | Front face: 1 door(s) |
| Door opening side | Reversible (120 °) |
| Lock type | 3 points lock, 3 mm double-bar |
| Accessibility for operation | Front |
| Removable parts | Door by hinges, Cable gland plate by screws, Mounting plate by fixing element |
| Material | Enclosure: steel, Mounting plate: galvanised steel |
| Surface finish | Enclosure: epoxy-polyester powder |
| Colour | Enclosure: grey (RAL 7035) |
| Standards | IEC 62208, UL, CUL |
| Product certifications | cUL, DNV, UL, GL, BV |
| Net weight | 15 kg |
| NEMA degree of protection | NEMA 4X/13 |
| IK degree of protection | IK10 conforming to IEC 62262 |
| IP degree of protection | IP66 conforming to IEC 60529 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 30.000 cm |
| Package 1 Width | 42.000 cm |
| Package 1 Length | 61.500 cm |
| Package 1 Weight | 14.234 kg |
| Unit Type of Package 2 | PAM |
| Number of Units in Package 2 | 27 |
| Package 2 Height | 200.000 cm |
| Package 2 Width | 100.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 398.500 kg |
| Coverage | Core product |
| Warranty | 18 months |
