Schneider Electric NSYS3D5525P
Spacial S3D is a multi-purpose wall-mounting enclosure made from steel and galvanised steel It is designed for use in harsh environments and is certified by UL, cUL, LR, BV, GL, and DNV The enclosure…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

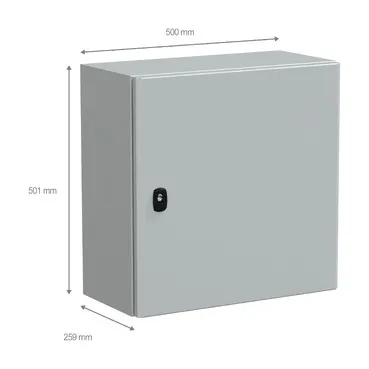

Spacial S3D is a multi-purpose wall-mounting enclosure made from steel and galvanised steel It is designed for use in harsh environments and is certified by UL, cUL, LR, BV, GL, and DNV The enclosure has a nominal height, width and depth of 500mm, 500mm and 250mm, respectively The enclosure is grey-coloured (RAL7035) with an epoxy-polyester powder surface finish The enclosure consists of a body, a mounting plate, a plain door with a lock and a cable gland plate The door can be opened up to 120°, allowing easy access to the equipment inside
Specification
| Range |
PanelSeT |
|---|---|
| Product name |
PanelSeT S3D |
| Application |
Multi-purpose |
| Category |
Compact enclosure |
| Enclosure nominal height |
500 mm |
| Enclosure nominal width |
500 mm |
| Enclosure nominal depth |
250 mm |
| Door type |
Plain |
| Mounting plate description |
Plain |
| Type of gland plate |
Standard |
| Installation accessory type |
Wall-mounting |
| Device composition |
1 body, 1 mounting plate, 1 door with lock, 1 cable gland plate |
| Body type |
Single piece body, Gutter-shaped front rail double sheet thickness |
| Number of doors |
Front face: 1 door(s) |
| Door opening side |
Reversible (120 °) |
| Lock type |
3 mm double-bar lock |
| Accessibility for operation |
Front |
| Removable parts |
Door by hinges, Cable gland plate by screws, Mounting plate by fixing element |
| Material |
Enclosure: steel, Mounting plate: galvanised steel |
| Surface finish |
Enclosure: epoxy-polyester powder |
| Colour |
Enclosure: grey (RAL 7035) |
| Standards |
IEC 62208, UL, CUL |
| Product certifications |
UL, cUL, BV, GL, DNV |
| Net weight |
15 kg |
| NEMA degree of protection |
NEMA 4X/13 |
| IK degree of protection |
IK10 conforming to IEC 62262 |
| IP degree of protection |
IP66 conforming to IEC 60529 |
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
30.000 cm |
| Package 1 Width |
51.500 cm |
| Package 1 Length |
52.000 cm |
| Package 1 Weight |
13.672 kg |
| Unit Type of Package 2 |
P12 |
| Number of Units in Package 2 |
18 |
| Package 2 Height |
170.000 cm |
| Package 2 Width |
80.000 cm |
| Package 2 Length |
120.000 cm |
| Package 2 Weight |
260.000 kg |
| Coverage |
Core product |
| Warranty |
18 months |
