Schneider Electric NSYS3D5425
Spacial S3D steel wall-mounting enclosure is designed for multi-purpose applications It is suitable for use in harsh environments, as it has a high impact resistance with an IK10 rating (IEC62262) and…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

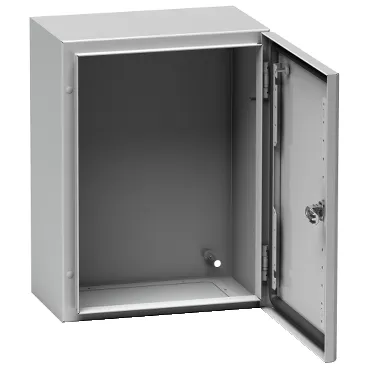

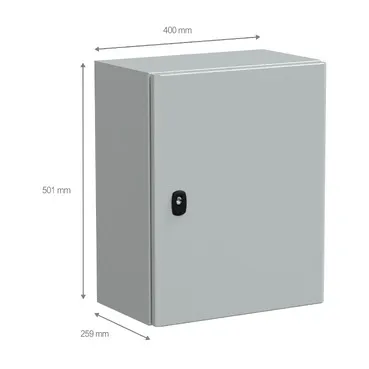

Spacial S3D steel wall-mounting enclosure is designed for multi-purpose applications It is suitable for use in harsh environments, as it has a high impact resistance with an IK10 rating (IEC62262) and a high dust and water resistance with an IP66 rating (IEC60529) The enclosure has a nominal height, width and depth of 500mm, 400mm and 250mm, respectively It is grey-coloured (RAL7035) with an epoxy-polyester powder surface finish The enclosure consists of a body, one door, one lock and one cable gland plate The door can be opened up to 120°, allowing easy access to the equipment inside Furthermore, it is possible to change the opening side of the door (reversible) The door has a three-point lock with a 3mm double-bar insert The door and the cable gland plate can be removed for maintenance purposes The net weight of the enclosure is 10,2kg
Specification
| Range |
PanelSeT |
|---|---|
| Product name |
PanelSeT S3D |
| Application |
Multi-purpose |
| Category |
Compact enclosure |
| Enclosure nominal height |
500 mm |
| Enclosure nominal width |
400 mm |
| Enclosure nominal depth |
250 mm |
| Door type |
Plain |
| Mounting plate description |
Without mounting plate |
| Type of gland plate |
Standard |
| Installation accessory type |
Wall-mounting |
| Device composition |
1 body, 1 door, 1 lock, 1 cable gland plate |
| Body type |
Gutter-shaped front rail double sheet thickness, Single piece body |
| Number of doors |
Front face: 1 door(s) |
| Door opening side |
Reversible (120 °) |
| Lock type |
3 mm double-bar lock |
| Accessibility for operation |
Front |
| Removable parts |
Door by hinges, Cable gland plate by screws |
| Material |
Steel |
| Surface finish |
Epoxy-polyester powder |
| Colour |
Grey (RAL 7035) |
| Standards |
IEC 62208, UL, CUL |
| Product certifications |
DNV, UL, BV, cUL, GL |
| Net weight |
10.2 kg |
| NEMA degree of protection |
NEMA 4X/13 |
| IK degree of protection |
IK10 conforming to IEC 62262 |
| IP degree of protection |
IP66 conforming to IEC 60529 |
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
29.000 cm |
| Package 1 Width |
42.000 cm |
| Package 1 Length |
51.000 cm |
| Package 1 Weight |
9.140 kg |
| Unit Type of Package 2 |
PAM |
| Number of Units in Package 2 |
27 |
| Package 2 Height |
170.000 cm |
| Package 2 Width |
100.000 cm |
| Package 2 Length |
120.000 cm |
| Package 2 Weight |
269.000 kg |
| Coverage |
Core product |
| Warranty |
18 months |
