Schneider Electric NSYS3D3215P
Spacial S3D steel wall-mounting enclosure is designed for multi-purpose applications, making it suitable for use in harsh environments It has a nominal height, width and depth of 300mm, 200mm and 150m…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

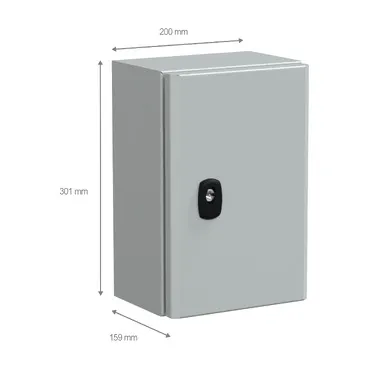

Spacial S3D steel wall-mounting enclosure is designed for multi-purpose applications, making it suitable for use in harsh environments It has a nominal height, width and depth of 300mm, 200mm and 150mm, respectively The enclosure is grey-coloured (RAL7035) with an epoxy-polyester powder surface finish The enclosure consists of a body, a mounting plate, one plain door with a 3mm double-bar lock, and one cable gland plate The doors can be opened up to 120°, allowing easy access to the equipment inside Furthermore, it is possible to change the opening side of the doors (reversible) The doors and the cable gland plates can be removed for maintenance purposes, and the mounting plate can be removed by fixing element The net weight of the enclosure is 3,58kg The enclosure has a NEMA 4X/13 rating, IK10 (IEC62262) rating and IP66 (IEC60529) rating, making it highly resistant to dust and water It also has a single piece body and a gutter-shaped front rail double sheet thickness for enhanced durability
Specification
| Range | PanelSeT |
|---|---|
| Product name | PanelSeT S3D |
| Application | Multi-purpose |
| Category | Compact enclosure |
| Enclosure nominal height | 300 mm |
| Enclosure nominal width | 200 mm |
| Enclosure nominal depth | 150 mm |
| Door type | Plain |
| Mounting plate description | Plain |
| Type of gland plate | Standard |
| Installation accessory type | Wall-mounting |
| Device composition | 1 body, 1 mounting plate, 1 door with lock, 1 cable gland plate |
| Body type | Single piece body, Gutter-shaped front rail double sheet thickness |
| Number of doors | Front face: 1 door(s) |
| Door opening side | Reversible (120 °) |
| Lock type | 3 mm double-bar lock |
| Accessibility for operation | Front |
| Removable parts | Door by hinges, Cable gland plate by screws, Mounting plate by fixing element |
| Material | Enclosure: steel, Mounting plate: galvanised steel |
| Surface finish | Enclosure: epoxy-polyester powder |
| Colour | Enclosure: grey (RAL 7035) |
| Standards | IEC 62208, UL, CUL |
| Product certifications | UL, BV, GL, DNV, cUL |
| Net weight | 3.58 kg |
| NEMA degree of protection | NEMA 4X/13 |
| IK degree of protection | IK10 conforming to IEC 62262 |
| IP degree of protection | IP66 conforming to IEC 60529 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 19.500 cm |
| Package 1 Width | 21.000 cm |
| Package 1 Length | 31.500 cm |
| Package 1 Weight | 3.602 kg |
| Unit Type of Package 2 | PAM |
| Number of Units in Package 2 | 105 |
| Package 2 Height | 170.000 cm |
| Package 2 Width | 100.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 393.210 kg |
| Coverage | Core product |
| Warranty | 18 months |
