Schneider Electric NSYS3D3215

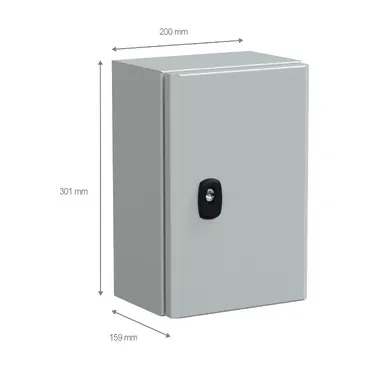

Spacial S3D steel wall-mounting enclosure is designed for multi-purpose applications and is suitable for use in harsh and hazardous environments It has a nominal height, width and depth of 300mm, 200m…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

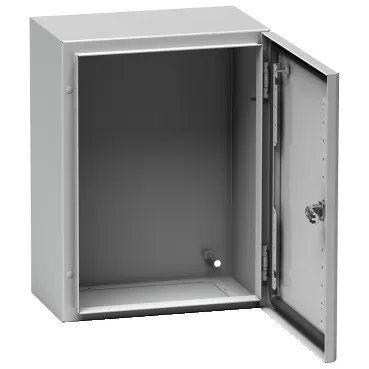

Spacial S3D steel wall-mounting enclosure is designed for multi-purpose applications and is suitable for use in harsh and hazardous environments It has a nominal height, width and depth of 300mm, 200mm and 150mm respectively The enclosure is grey-coloured (RAL7035) with an epoxy-polyester powder surface finish The enclosure consists of a body, one door, one lock and one cable gland plate The door can be opened up to 120°, allowing easy access to the equipment inside and can be reversed for convenience The door has a three-point lock with a 3mm double-bar insert The door and the cable gland plate can be removed for maintenance purposes The net weight of the enclosure is 3,02kg It is certified by BV, GL, UL, DNV, LR and cUL and has a NEMA 4X/13 rating, IK10 (IEC62262) rating and an IP66 rating (IEC60529) The single piece body and the gutter-shaped front rail double sheet thickness ensures a high impact resistance
Specification
| Range |
PanelSeT |
|---|---|
| Product name |
PanelSeT S3D |
| Application |
Multi-purpose |
| Category |
Compact enclosure |
| Enclosure nominal height |
300 mm |
| Enclosure nominal width |
200 mm |
| Enclosure nominal depth |
150 mm |
| Door type |
Plain |
| Mounting plate description |
Without mounting plate |
| Type of gland plate |
Standard |
| Installation accessory type |
Wall-mounting |
| Device composition |
1 body, 1 door, 1 lock, 1 cable gland plate |
| Body type |
Single piece body, Gutter-shaped front rail double sheet thickness |
| Number of doors |
Front face: 1 door(s) |
| Door opening side |
Reversible (120 °) |
| Lock type |
3 mm double-bar lock |
| Accessibility for operation |
Front |
| Removable parts |
Door by hinges, Cable gland plate by screws |
| Material |
Steel |
| Surface finish |
Epoxy-polyester powder |
| Colour |
Grey (RAL 7035) |
| Standards |
IEC 62208, UL, CUL |
| Product certifications |
BV, GL, UL, DNV, cUL |
| Net weight |
3.02 kg |
| NEMA degree of protection |
NEMA 4X/13 |
| IK degree of protection |
IK10 conforming to IEC 62262 |
| IP degree of protection |
IP66 conforming to IEC 60529 |
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
19.000 cm |
| Package 1 Width |
22.000 cm |
| Package 1 Length |
31.500 cm |
| Package 1 Weight |
3.090 kg |
| Unit Type of Package 2 |
PAM |
| Number of Units in Package 2 |
105 |
| Package 2 Height |
170.000 cm |
| Package 2 Width |
100.000 cm |
| Package 2 Length |
120.000 cm |
| Package 2 Weight |
339.450 kg |
| Coverage |
Core product |
| Warranty |
18 months |
