Schneider Electric NSYS3D121030DT
Spacial S3D steel wall-mounting enclosure is designed for multi-purpose applications in harsh environments It is certified by cUL, BV, DNV, UL, GL and LR, and has a nominal height, width and depth of…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

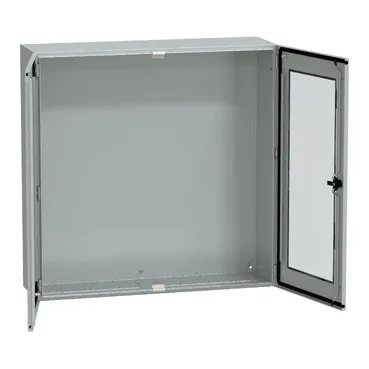

Spacial S3D steel wall-mounting enclosure is designed for multi-purpose applications in harsh environments It is certified by cUL, BV, DNV, UL, GL and LR, and has a nominal height, width and depth of 1200mm, 1000mm and 300mm, respectively The enclosure is grey-coloured (RAL7035) with an epoxy-polyester powder surface finish The enclosure consists of a body, two cable gland plates, two glazed doors and a lock The doors can be opened up to 120°, allowing easy access to the equipment inside Furthermore, it is possible to change the opening side of the doors (reversible) The doors have a three-point lock with a 3mm double-bar insert The doors and the cable gland plates can be removed for maintenance purposes The net weight of the enclosure is 52kg
Specification
| Range | PanelSeT |
|---|---|
| Product name | PanelSeT S3D |
| Application | Multi-purpose |
| Category | Compact enclosure |
| Enclosure nominal height | 1200 mm |
| Enclosure nominal width | 1000 mm |
| Enclosure nominal depth | 300 mm |
| Door type | Glazed |
| Mounting plate description | Without mounting plate |
| Type of gland plate | Standard |
| Installation accessory type | Wall-mounting |
| Device composition | 1 body, 2 cable gland plate, 1 lock, 2 door |
| Body type | Gutter-shaped front rail double sheet thickness, Single piece body |
| Number of doors | Front face: 2 door(s) |
| Door opening side | Reversible (120 °) |
| Lock type | 3 points lock, 3 mm double-bar |
| Accessibility for operation | Front |
| Removable parts | Door by hinges, Cable gland plate by screws |
| Material | Body: steel, Door: steel and security glass |
| Surface finish | Epoxy-polyester powder |
| Colour | Grey (RAL 7035) |
| Standards | IEC 62208, UL, CUL |
| Product certifications | cUL, BV, DNV, UL, GL |
| Net weight | 52 kg |
| Electromagnetic compatibility | Electromagnetic field immunity test |
| IK degree of protection | IK08 conforming to IEC 62262 |
| IP degree of protection | IP55 conforming to IEC 60529 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 35.400 cm |
| Package 1 Width | 102.400 cm |
| Package 1 Length | 122.600 cm |
| Package 1 Weight | 52.000 kg |
| Unit Type of Package 2 | P12 |
| Number of Units in Package 2 | 2 |
| Package 2 Height | 120.000 cm |
| Package 2 Width | 80.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 113.000 kg |
| Coverage | Core product |
| Warranty | 18 months |
