Schneider Electric NSYS3D10640T
Spacial S3D steel wall-mounting enclosure for multi-purpose applications is designed for use in harsh environments It can withstand high impact due to its IK08 (IEC62262) rating and has a high resista…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

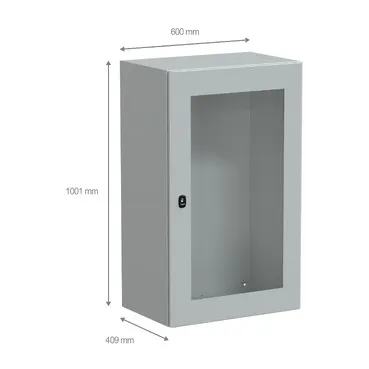

Spacial S3D steel wall-mounting enclosure for multi-purpose applications is designed for use in harsh environments It can withstand high impact due to its IK08 (IEC62262) rating and has a high resistance to dust and water with an IP66 rating (IEC60529) This enclosure has a nominal height, width and depth of 1000mm, 600mm and 400mm, respectively The enclosure is grey-coloured (RAL7035) with an epoxy-polyester powder surface finish The enclosure consists of a body, one glazed door, one lock and one cable gland plate The door can be opened up to 120°, allowing easy access to the equipment inside Furthermore, it is possible to change the opening side of the door (reversible) The door has a three-point lock with a 3mm double-bar insert The door and the cable gland plate can be removed for maintenance purposes
Specification
| Range |
PanelSeT |
|---|---|
| Product name |
PanelSeT S3D |
| Application |
Multi-purpose |
| Category |
Compact enclosure |
| Enclosure nominal height |
1000 mm |
| Enclosure nominal width |
600 mm |
| Enclosure nominal depth |
400 mm |
| Door type |
Glazed |
| Mounting plate description |
Without mounting plate |
| Type of gland plate |
Standard |
| Installation accessory type |
Wall-mounting |
| Device composition |
1 body, 1 door, 1 lock, 1 cable gland plate |
| Body type |
Single piece body, Gutter-shaped front rail double sheet thickness |
| Number of doors |
Front face: 1 door(s) |
| Door opening side |
Reversible (120 °) |
| Lock type |
3 points lock, 3 mm double-bar |
| Accessibility for operation |
Front |
| Removable parts |
Door by hinges, Cable gland plate by screws |
| Material |
Body: steel, Door: steel and security glass |
| Surface finish |
Epoxy-polyester powder |
| Colour |
Grey (RAL 7035) |
| Standards |
IEC 62208, UL, CUL |
| Product certifications |
UL, BV, GL, DNV, cUL |
| Net weight |
34 kg |
| Electromagnetic compatibility |
Electromagnetic field immunity test |
| NEMA degree of protection |
NEMA 4X/13 |
| IK degree of protection |
IK08 conforming to IEC 62262 |
| IP degree of protection |
IP66 conforming to IEC 60529 |
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
45.000 cm |
| Package 1 Width |
61.500 cm |
| Package 1 Length |
103.500 cm |
| Package 1 Weight |
34.000 kg |
| Unit Type of Package 2 |
PAM |
| Number of Units in Package 2 |
6 |
| Package 2 Height |
201.000 cm |
| Package 2 Width |
100.000 cm |
| Package 2 Length |
120.000 cm |
| Package 2 Weight |
215.000 kg |
| Warranty |
18 months |
