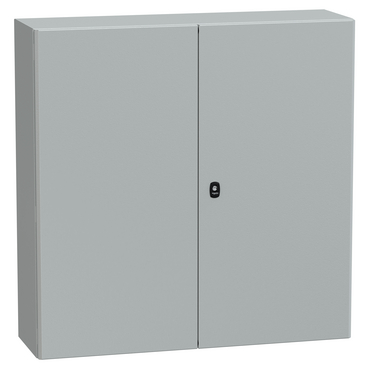

Schneider Electric NSYS3D101030D
Spacial S3D is a wall-mounting steel enclosure for multi-purpose applications It is designed for use in harsh environments and has a nominal height, width and depth of 1000mm, 1000mm and 300mm, respec…
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Spacial S3D is a wall-mounting steel enclosure for multi-purpose applications It is designed for use in harsh environments and has a nominal height, width and depth of 1000mm, 1000mm and 300mm, respectively The enclosure is grey-coloured (RAL7035) with an epoxy-polyester powder surface finish It has a high impact resistance with an IK10 (IEC62262) rating and a high resistance to dust and water with an IP55 rating (IEC60529) This enclosure consists of a body, two cable gland plates, two plain doors and a lock The doors can be opened up to 120°, allowing easy access to the equipment inside Furthermore, it is possible to change the opening side of the doors (reversible)
Specification
| Range |
PanelSeT |
|---|---|
| Product name |
PanelSeT S3D |
| Application |
Multi-purpose |
| Category |
Compact enclosure |
| Enclosure nominal height |
1000 mm |
| Enclosure nominal width |
1000 mm |
| Enclosure nominal depth |
300 mm |
| Door type |
Plain |
| Mounting plate description |
Without mounting plate |
| Type of gland plate |
Standard |
| Installation accessory type |
Wall-mounting |
| Device composition |
1 body, 2 cable gland plate, 1 lock, 2 door |
| Body type |
Gutter-shaped front rail double sheet thickness, Single piece body |
| Number of doors |
Front face: 2 door(s) |
| Door opening side |
Reversible (120 °) |
| Lock type |
3 points lock, 3 mm double-bar |
| Accessibility for operation |
Front |
| Removable parts |
Door by hinges, Cable gland plate by screws |
| Material |
Steel |
| Surface finish |
Epoxy-polyester powder |
| Colour |
Grey (RAL 7035) |
| Standards |
IEC 62208 |
| Product certifications |
GL, UL, cUL, BV, DNV |
| Net weight |
46 kg |
| Electromagnetic compatibility |
Electromagnetic field immunity test |
| IK degree of protection |
IK10 conforming to IEC 62262 |
| IP degree of protection |
IP55 conforming to IEC 60529 |
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
35.000 cm |
| Package 1 Width |
101.500 cm |
| Package 1 Length |
102.500 cm |
| Package 1 Weight |
45.200 kg |
| Unit Type of Package 2 |
PAL |
| Number of Units in Package 2 |
3 |
| Package 2 Height |
115.000 cm |
| Package 2 Width |
102.000 cm |
| Package 2 Length |
120.000 cm |
| Package 2 Weight |
150.000 kg |
| Coverage |
Core product |
| Warranty |
18 months |
