Schneider Electric NSYS3CM505025
Spacial S3CM suspension system steel enclosure with trim frame aluminium. 500 x 500 x 250 mm. Human-machine dialogue application. Single piece body, without mounting plate included. 3 mm double bar lo…
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

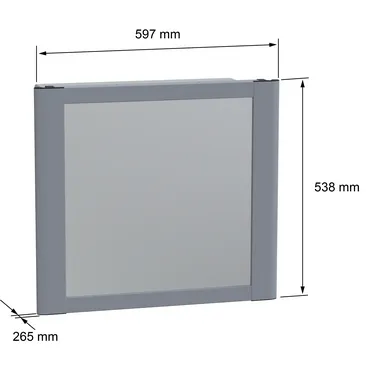

Spacial S3CM suspension system steel enclosure with trim frame aluminium. 500 x 500 x 250 mm. Human-machine dialogue application. Single piece body, without mounting plate included. 3 mm double bar lock insert. Steel made, epoxy-polyester powder finish. Protection IP 54, IK10, Enclosure grey RAL 7035, front face grey RAL 7040.
Specification
| Range |
PanelSeT |
|---|---|
| Product name |
PanelSeT S3CM |
| Application |
Human-machine dialogue application |
| Category |
Control enclosure |
| Enclosure nominal height |
500 mm |
| Enclosure nominal width |
500 mm |
| Enclosure nominal depth |
250 mm |
| Installation accessory type |
Suspension system |
| Product destination |
Interface |
| Device composition |
1 body, 1 door with lock, 2 rail, 1 reinforcement plate, 1 front trim frame |
| Body type |
Single piece body |
| Door type |
Plain |
| Number of doors |
Rear: 1 door(s) |
| Door opening side |
Reversible (120 °) |
| Lock type |
3 mm double-bar lock |
| Mounting plate description |
Without mounting plate |
| Type of gland plate |
Without gland plate |
| Accessibility for operation |
Rear |
| Removable parts |
Door by hinges, Trim frame by screws, 2 rails by screws |
| Material |
Enclosure and front face: steel, Trim frame: aluminium |
| Surface finish |
Epoxy-polyester powder |
| Colour |
Enclosure: grey (RAL 7035), Front face: grey (RAL 7040) |
| Standards |
UL |
| Net weight |
16.53 kg |
| IP degree of protection |
IP54 conforming to IEC 60529 |
| IK degree of protection |
IK10 conforming to IEC 62262 |
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
29.000 cm |
| Package 1 Width |
62.000 cm |
| Package 1 Length |
63.000 cm |
| Package 1 Weight |
16.530 kg |
| Unit Type of Package 2 |
PAM |
| Number of Units in Package 2 |
18 |
| Package 2 Height |
200.000 cm |
| Package 2 Width |
100.000 cm |
| Package 2 Length |
120.000 cm |
| Package 2 Weight |
311.000 kg |
| Warranty |
18 months |
