Schneider Electric NSYRSWP21
Partial swing racks allow mounting rackable electronic equipment with 19″ server racks in Spacial SF and Spacial SM enclosures The width is 600mm The height is 1002mm The depth is 1002mm Supports moun…
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

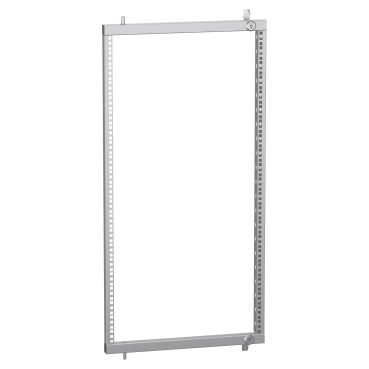

Partial swing racks allow mounting rackable electronic equipment with 19″ server racks in Spacial SF and Spacial SM enclosures The width is 600mm The height is 1002mm The depth is 1002mm Supports mounting of 21 units Depth adjustable in steps of 25mm
Specification
| Range |
PanelSeT |
|---|---|
| Accessory / separate part category |
Mounting accessory |
| Product or component type |
19" rack |
| Application |
Electronic application |
| For enclosure nominal dimensions |
– H: 1002 mm |
| Rack type |
Swing |
| Mounting location |
Front of enclosure |
| Mounting support |
Partial 19" swing rack support |
| Range compatibility |
PanelSeT PanelSeT SF, PanelSeT PanelSeT SM |
| Device composition |
1 rack |
| Number of units 19" |
21 |
| Rack coverage |
Partial |
| Material |
Steel |
| Enclosure/cubicle description |
Floor-standing enclosure |
| Surface finish |
Zinc coated |
| Lock type |
Lock 5 mm double bar |
| Fixing mode |
By fixing element |
| Adjustment |
Adjustable in depth every 25 mm |
| Permanent permissible load |
2 kg per unit |
| Opening of the 19" racks |
Reversible 120 ° |
| Height |
1002 mm |
| Width |
600 mm, 800 mm |
| Depth |
1002 mm |
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
7.500 cm |
| Package 1 Width |
52.000 cm |
| Package 1 Length |
103.000 cm |
| Package 1 Weight |
4.776 kg |
| Unit Type of Package 2 |
PAM |
| Number of Units in Package 2 |
15 |
| Package 2 Height |
125.500 cm |
| Package 2 Width |
100.000 cm |
| Package 2 Length |
120.000 cm |
| Package 2 Weight |
84.000 kg |
| Warranty |
18 months |
