Schneider Electric NSYRSW40
Swing off-centred racks allow mounting rackable electronic equipment with 19″ server racks in Spacial SF and Spacial SM enclosures The width is 800mm The height is 2000mm The depth is 1901mm Supports…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

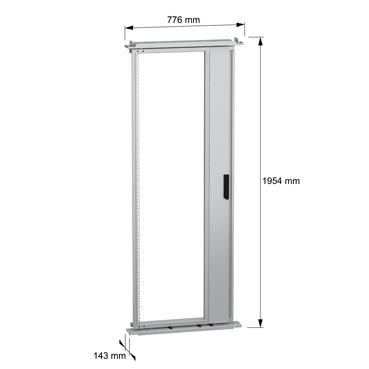

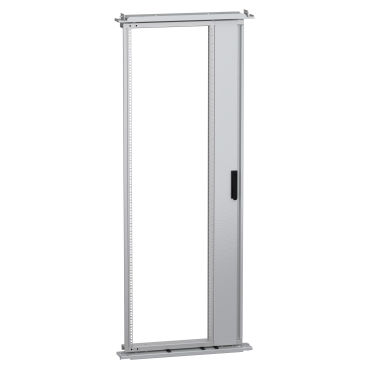

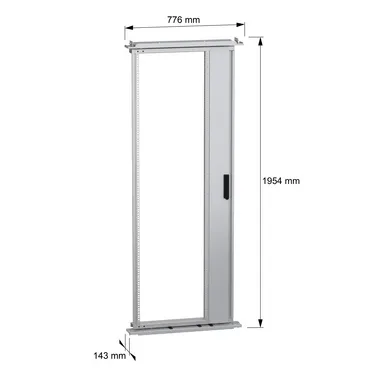

Swing off-centred racks allow mounting rackable electronic equipment with 19″ server racks in Spacial SF and Spacial SM enclosures The width is 800mm The height is 2000mm The depth is 1901mm Supports mounting of 40 units Depth adjustable in steps of 25mm Opening is reversible, opening angle is 120 ° The kit supplied with fixing elements, 2 800mm swing rack supports, 1 hinged rack and 1 side lid with handle
Specification
| Range | PanelSeT |
|---|---|
| Accessory / separate part category | Mounting accessory |
| Product or component type | 19″ rack |
| Application | Electronic application |
| For enclosure nominal dimensions | – H: 2000 mm |
| Rack type | Swing |
| Mounting location | On structure of enclosure |
| Range compatibility | PanelSeT PanelSeT SF, PanelSeT PanelSeT SM |
| Device composition | Fixing elements, 2 800 mm swing rack supports, 1 hinged rack, 1 side lid with handle |
| Quantity per set | Set of 1 |
| Number of units 19" | 40 |
| Rack coverage | Complete |
| Rack position | Off-centered |
| Material | Steel |
| Enclosure/cubicle description | Floor-standing enclosure |
| Surface finish | Zinc coated |
| Lock type | Handle with ball lock |
| Fixing mode | By fixing element |
| Adjustment | Adjustable in depth every 25 mm |
| Colour | Side plate: grey (RAL 7035) |
| Permanent permissible load | 3.75 kg per unit with a maximum of 150 kg |
| Opening of the 19" racks | Reversible 120 ° |
| Height | 2000 mm |
| Width | 800 mm |
| Depth | 1901 mm |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 12.000 cm |
| Package 1 Width | 72.500 cm |
| Package 1 Length | 196.000 cm |
| Package 1 Weight | 26.000 kg |
| Unit Type of Package 2 | PAL |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 120.000 cm |
| Package 2 Width | 120.000 cm |
| Package 2 Length | 210.000 cm |
| Package 2 Weight | 349.000 kg |
| Warranty | 18 months |
