Schneider Electric NSYRCKP26
Partial fixed racks allow mounting rackable electronic equipment with 19″ server racks in Spacial SF and Spacial SM enclosures The height is 1200mm The depth is 45mm Supports mounting of 26 units It i…
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

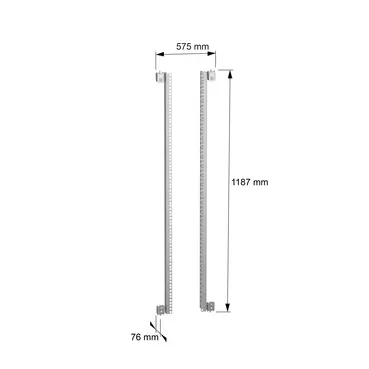

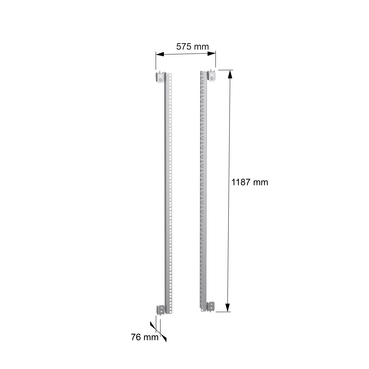

Partial fixed racks allow mounting rackable electronic equipment with 19″ server racks in Spacial SF and Spacial SM enclosures The height is 1200mm The depth is 45mm Supports mounting of 26 units It is possible to fasten cross rails Depth adjustable in steps of 25mm The kit supplied with fixing elements and 2 uprights
Specification
| Range |
PanelSeT |
|---|---|
| Accessory / separate part category |
Mounting accessory |
| Product or component type |
19" rack |
| Application |
Electronic application |
| For enclosure nominal dimensions |
– H: 1200 mm |
| Rack type |
Fixed |
| Mounting location |
Top front of enclosure |
| Mounting support |
Cross rails |
| Range compatibility |
PanelSeT PanelSeT SF, PanelSeT PanelSeT SM |
| Device composition |
Fixing elements, 2 upright |
| Quantity per set |
Set of 1 |
| Number of units 19" |
26 |
| Rack coverage |
Partial |
| Material |
Steel |
| Enclosure/cubicle description |
Floor-standing enclosure |
| Surface finish |
Zinc coated |
| Fixing mode |
By fixing element |
| Adjustment |
Adjustable in depth every 25 mm |
| Permanent permissible load |
2 kg per unit |
| Height |
1200 mm |
| Width |
Nominal: 600 mm, Nominal: 800 mm |
| Depth |
45 mm |
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
5.000 cm |
| Package 1 Width |
11.000 cm |
| Package 1 Length |
116.500 cm |
| Package 1 Weight |
3.472 kg |
| Unit Type of Package 2 |
PAL |
| Number of Units in Package 2 |
20 |
| Package 2 Height |
29.000 cm |
| Package 2 Width |
37.500 cm |
| Package 2 Length |
120.000 cm |
| Package 2 Weight |
69.440 kg |
| Warranty |
18 months |
