Schneider Electric NSYRCK42
Fixed racks allow mounting rackable electronic equipment with 19″ server racks in Spacial SF 5G, Spacial SF and Spacial SM enclosures The height is 2000mm The depth is 45mm Supports mounting of 42 uni…
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

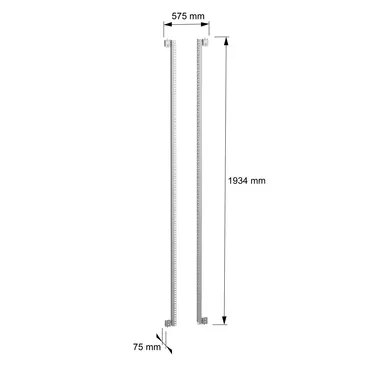

Fixed racks allow mounting rackable electronic equipment with 19″ server racks in Spacial SF 5G, Spacial SF and Spacial SM enclosures The height is 2000mm The depth is 45mm Supports mounting of 42 units It is possible to fasten 19″ fixed support bracket Depth adjustable in steps of 25mm The kit supplied with fixing elements and 2 uprights
Specification
| Range |
PanelSeT |
|---|---|
| Accessory / separate part category |
Mounting accessory |
| Product or component type |
19" rack |
| Application |
Electronic application |
| For enclosure nominal dimensions |
– H: 2000 mm |
| Rack type |
Fixed |
| Mounting location |
On structure of enclosure |
| Mounting support |
19" fixed support bracket |
| Range compatibility |
PanelSeT PanelSeT SF 5G, PanelSeT PanelSeT SF, PanelSeT PanelSeT SM |
| Device composition |
Fixing elements, 2 upright |
| Quantity per set |
Set of 1 |
| Number of units 19" |
42 |
| Rack coverage |
Complete |
| Material |
Steel |
| Enclosure/cubicle description |
Floor-standing enclosure |
| Surface finish |
Zinc coated |
| Fixing mode |
By fixing element |
| Adjustment |
Adjustable in depth every 25 mm |
| Permanent permissible load |
400 kg |
| Height |
2000 mm |
| Width |
Nominal: 600 mm, Nominal: 800 mm |
| Depth |
45 mm |
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
6.000 cm |
| Package 1 Width |
11.500 cm |
| Package 1 Length |
190.000 cm |
| Package 1 Weight |
5.472 kg |
| Unit Type of Package 2 |
P2M |
| Number of Units in Package 2 |
40 |
| Package 2 Height |
36.000 cm |
| Package 2 Width |
120.000 cm |
| Package 2 Length |
200.000 cm |
| Package 2 Weight |
251.000 kg |
| Warranty |
18 months |
