Schneider Electric NSYRC18
Spacial SF/SM side plates of the centred fixed rack. 1800 x 800 mm. Multi-purpose application. 19inch fixed rack centred mounting support. Fixing by screws on rack. Steel made. Grey RAL 7035. 2 side p…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

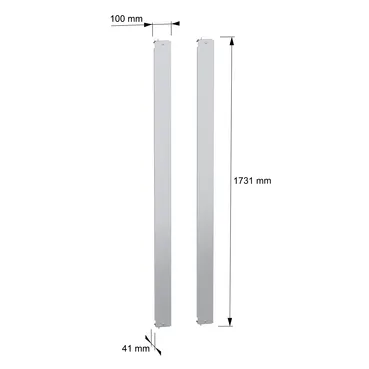

Spacial SF/SM side plates of the centred fixed rack. 1800 x 800 mm. Multi-purpose application. 19inch fixed rack centred mounting support. Fixing by screws on rack. Steel made. Grey RAL 7035. 2 side plates, fixing elements incl.
Specification
| Range | PanelSeT |
|---|---|
| Accessory / separate part category | Enclosure accessory |
| Product or component type | Side plate |
| Application | Multi-purpose |
| For enclosure nominal dimensions | – |
| Mounting support | 19″ fixed rack, centred |
| Range compatibility | PanelSeT PanelSeT SF, PanelSeT PanelSeT SM |
| Device composition | Fixing elements, 2 side plates |
| Quantity per set | Set of 1 |
| Material | Steel |
| Colour | Grey (RAL 7035) |
| Surface finish | Epoxy-polyester powder |
| Fixing mode | By screws: 19″ fixed rack |
| Height | Nominal: 1800 mm |
| Width | Nominal: 800 mm |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.500 cm |
| Package 1 Width | 10.500 cm |
| Package 1 Length | 171.000 cm |
| Package 1 Weight | 5.250 kg |
| Unit Type of Package 2 | P2M |
| Number of Units in Package 2 | 50 |
| Package 2 Height | 42.000 cm |
| Package 2 Width | 120.000 cm |
| Package 2 Length | 200.000 cm |
| Package 2 Weight | 295.000 kg |
| Coverage | Core product |
| Warranty | 18 months |
