Schneider Electric NSYPMM77
Thalassa PLA/PHD metallic mounting plate. For enclosure H is750 x W is1000 mm. Step slides mounting location or on back inserts location (fixing by screw type M8). Plain mounting plate. 150 Kg permane…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Thalassa PLA/PHD metallic mounting plate. For enclosure H is750 x W is1000 mm. Step slides mounting location or on back inserts location (fixing by screw type M8). Plain mounting plate. 150 Kg permanent permissible load. Galvanised Steel. Grey RAL 7035.
Specification
| Range | PanelSeT |
|---|---|
| Accessory / separate part category | Mounting accessory |
| Product or component type | Mounting plate |
| Device application | Multi-purpose |
| Enclosure nominal dimensions | – |
| Mounting location | Back inserts, Step slide |
| Mounting plate description | Plain |
| Range compatibility | PanelSeT PLA, PanelSeT PHD |
| Device composition | 1 mounting plate |
| Material | Galvanised steel |
| Fixing mode | By screws – screw type M8 – on back inserts location |
| Permanent permissible load | 150 kg |

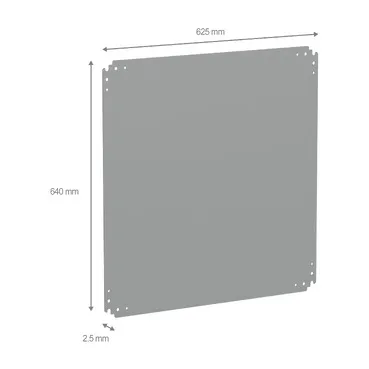

| Height | Nominal: 750 mm, Real: 640 mm |
| Width | Nominal: 750 mm, Real: 625 mm |
| Depth | Real : 125 mm |
| Thickness | 2.5 mm |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 0.300 cm |
| Package 1 Width | 62.500 cm |
| Package 1 Length | 64.000 cm |
| Package 1 Weight | 7.500 kg |
| Unit Type of Package 2 | PAM |
| Number of Units in Package 2 | 50 |
| Package 2 Height | 45.000 cm |
| Package 2 Width | 100.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 412.000 kg |
| Warranty | 18 months |
