Schneider Electric NSYPLM86BG
This PLM is a wall-mounted enclosure that is suitable for multi-purpose applications The enclosure has a nominal height, width, and depth of 847 mm, 636 mm, and 300 mm, respectively It is made of poly…
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

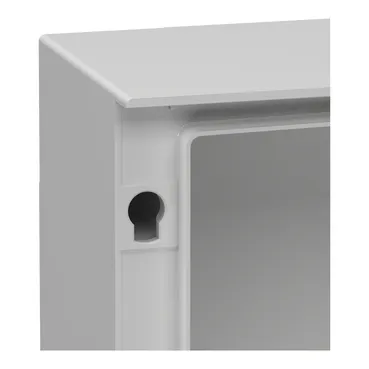

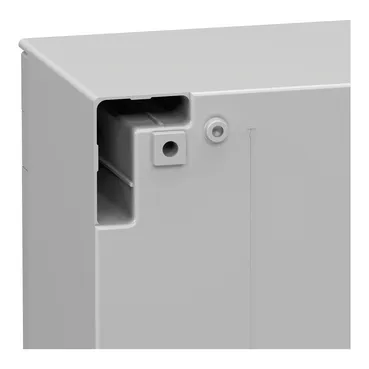

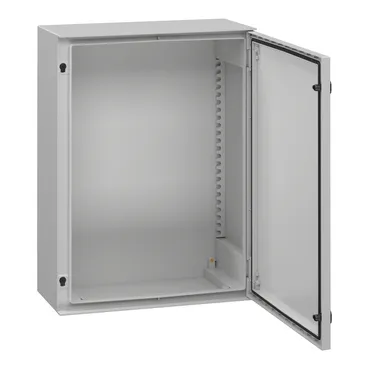

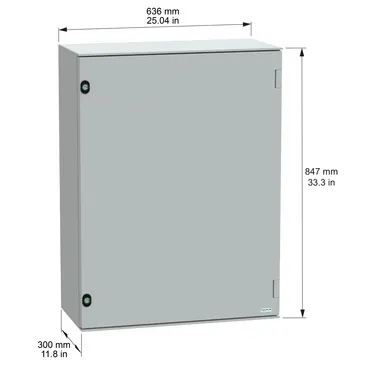

This PLM is a wall-mounted enclosure that is suitable for multi-purpose applications The enclosure has a nominal height, width, and depth of 847 mm, 636 mm, and 300 mm, respectively It is made of polyester reinforced with fibreglass, which offers durability and resistance to industrial and outdoor environments The enclosure comes in a grey (RAL 7035) color The enclosure consists of one body, one door, one mounting plate, and two locks The door is plain, allowing easy visibility of the equipment inside The door can be opened from the front and has two 3 mm double-bar locks The enclosure offers high protection against dust and water with an IP66 rating (IEC 60529) It is also highly resistant to impacts, with an IK10 rating (IEC 62262), and offers protection against electric shocks with a class II electrical insulation rating
Specification
| Range |
PanelSeT |
|---|---|
| Device short name |
PLM |
| Enclosure type |
Multi-purpose |
| Category |
Compact enclosure |
| Nominal height |
847 mm |
| Nominal width |
636 mm |
| Nominal depth |
300 mm |
| Enclosure mounting |
Wall mounted |
| Device composition |
1 body, 1 door, 1 mounting plate, 2 lock |
| Door type |
Plain |
| Lock type |
3 mm double-bar lock |
| Number of locks |
2 |
| Mounting plate description |
Plain bakelite |
| Accessibility for operation |
Front |
| Removable parts |
Door by hinges, Mounting plate by fixing element |
| Material |
Polyester reinforced with fibreglass |
| Colour |
Grey (RAL 7035) |
| Standards |
NEMA classification 13, IEC 62208, NEMA classification 4X |
| Product certifications |
UL |
| Electrical insulation class |
Class II |
| IP degree of protection |
IP66 conforming to IEC 60529 |
| IK degree of protection |
IK10 conforming to IEC 62262 |
| Fire resistance |
960 °C conforming to IEC 62208 |
| Ambient air temperature for operation |
-40…80 °C |
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
33.000 cm |
| Package 1 Width |
66.000 cm |
| Package 1 Length |
92.500 cm |
| Package 1 Weight |
19.500 kg |
| Unit Type of Package 2 |
PAM |
| Number of Units in Package 2 |
8 |
| Package 2 Height |
198.000 cm |
| Package 2 Width |
100.000 cm |
| Package 2 Length |
120.000 cm |
| Package 2 Weight |
156.000 kg |
| Warranty |
18 months |
