Schneider Electric NSYPLM68G
The Thalassa PLM landscape compact enclosure comes in grey colour and it’s designed for multi-purpose application and photovoltaic (Solar). This compact enclosure is composed of body, door, lock. Feat…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

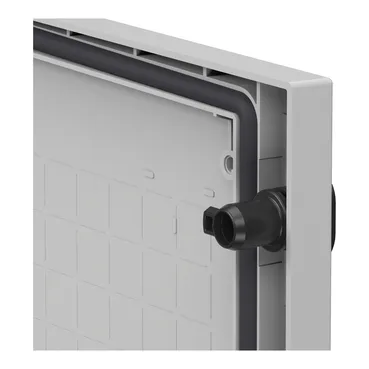

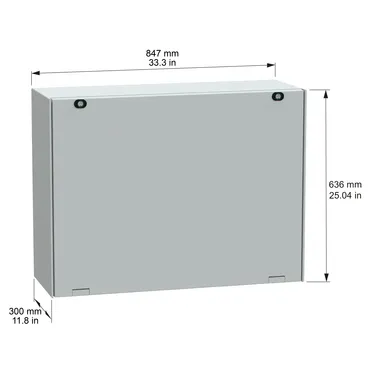

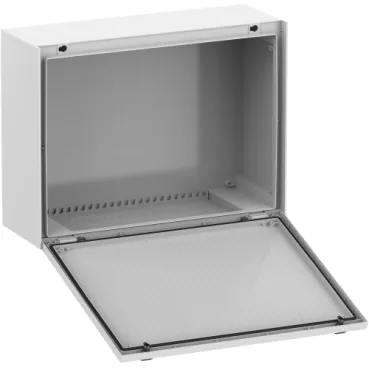

The Thalassa PLM landscape compact enclosure comes in grey colour and it’s designed for multi-purpose application and photovoltaic (Solar). This compact enclosure is composed of body, door, lock. Featuring a removable door by cut hinges, comes without mounting plate. Has a built-in canopy, one piece moulded with notches in the rear. The compact enclosure is made of polyester reinforced with fibreglass, making it durable and resistant. It has IP66 and IK10 protection level, which can help protect against impact, water and dust. The dimensions are (W) 847 mm x (H) 636 mm x (D) 300 mm. The door type is plain, and the door opening side is down. Equipped with two 3 mm double-bar lock lock type. It well satisfied the standard of IEC 62208, NEMA classification 13, NEMA classification 4X. This compact enclosure is BV, UL certified. This device is qualified as a green premium product, with minimal use of hazardous substances.
Specification
| Range |
PanelSeT |
|---|---|
| Device short name |
PLM |
| Enclosure type |
Multi-purpose |
| Category |
Compact enclosure |
| Nominal height |
636 mm |
| Nominal width |
847 mm |
| Nominal depth |
300 mm |
| Enclosure mounting |
Wall mounted |
| Installation direction |
Horizontal |
| Device composition |
1 body, 1 door, 2 lock |
| Body type |
Built-in canopy, on lateral side, One piece moulded with notches in the rear |
| Door type |
Plain |
| Door opening side |
Down |
| Lock type |
3 mm double-bar lock |
| Number of locks |
2 |
| Mounting plate description |
Without mounting plate |
| Accessibility for operation |
Front |
| Removable parts |
Door by cut hinges |
| Material |
Polyester reinforced with fibreglass |
| Colour |
Grey (RAL 7035) |
| Standards |
NEMA classification 13, IEC 62208, NEMA classification 4X |
| Product certifications |
UL, BV |
| Electrical insulation class |
Class II |
| IP degree of protection |
IP66 conforming to IEC 60529 |
| IK degree of protection |
IK10 conforming to IEC 62262 |
| Fire resistance |
960 °C conforming to IEC 62208 |
| Ambient air temperature for operation |
-40…80 °C |
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
33.000 cm |
| Package 1 Width |
65.500 cm |
| Package 1 Length |
93.000 cm |
| Package 1 Weight |
17.100 kg |
| Unit Type of Package 2 |
PAM |
| Number of Units in Package 2 |
8 |
| Package 2 Height |
199.000 cm |
| Package 2 Width |
100.000 cm |
| Package 2 Length |
120.000 cm |
| Package 2 Weight |
148.800 kg |
| Warranty |
18 months |
