Schneider Electric NSYPLM64VG
This PLM is a wall-mounted enclosure that is suitable for multi-purpose applications The enclosure has a nominal height, width, and depth of 647 mm, 436 mm, and 250 mm, respectively It is made of poly…
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

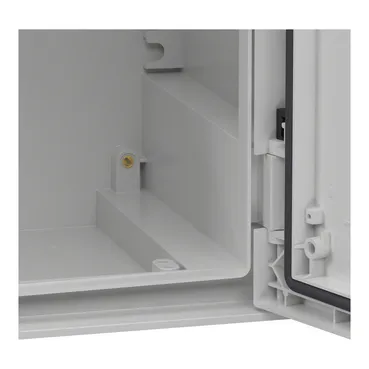

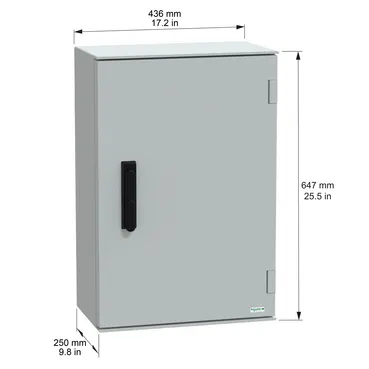

This PLM is a wall-mounted enclosure that is suitable for multi-purpose applications The enclosure has a nominal height, width, and depth of 647 mm, 436 mm, and 250 mm, respectively It is made of polyester reinforced with fibreglass, which offers durability and resistance to industrial and outdoor environments The enclosure comes in a grey (RAL 7035) color The enclosure consists of one body, one door, and one handle lock The door is plain and can be opened from the front with a 3 points lock and handle with 1242E key lock The enclosure offers high protection against dust and water with an IP66 rating (IEC 60529)
Specification
| Range |
PanelSeT |
|---|---|
| Device short name |
PLM |
| Enclosure type |
Multi-purpose |
| Category |
Compact enclosure |
| Nominal height |
647 mm |
| Nominal width |
436 mm |
| Nominal depth |
250 mm |
| Enclosure mounting |
Wall mounted |
| Device composition |
1 body, 1 door, 1 handle lock |
| Door type |
Plain |
| Lock type |
3 points lock, handle with 1242E key lock |
| Number of locks |
1 |
| Mounting plate description |
Without mounting plate |
| Accessibility for operation |
Front |
| Removable parts |
Door by hinges |
| Material |
Polyester reinforced with fibreglass |
| Colour |
Grey (RAL 7035) |
| Electrical insulation class |
Class II |
| IP degree of protection |
IP66 conforming to IEC 60529 |
| IK degree of protection |
IK10 conforming to IEC 62262 |
| Fire resistance |
960 °C conforming to IEC 62208 |
| Ambient air temperature for operation |
-40…80 °C |
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
28.000 cm |
| Package 1 Width |
46.000 cm |
| Package 1 Length |
71.000 cm |
| Package 1 Weight |
10.896 kg |
| Unit Type of Package 2 |
PAM |
| Number of Units in Package 2 |
21 |
| Package 2 Height |
196.000 cm |
| Package 2 Width |
100.000 cm |
| Package 2 Length |
120.000 cm |
| Package 2 Weight |
242.000 kg |
| Warranty |
18 months |
