Schneider Electric NSYPLM54PG

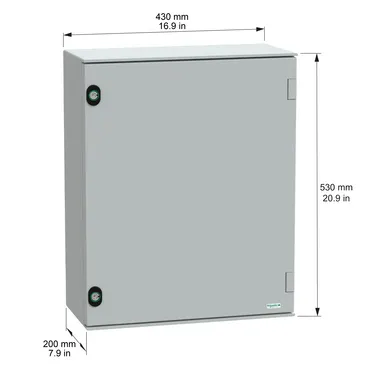

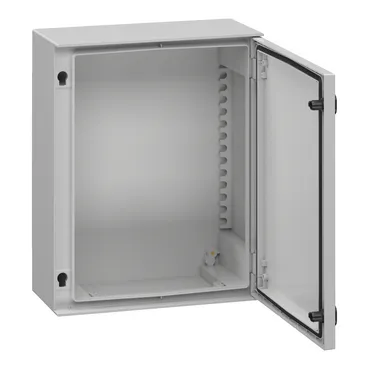

Wall mounted polyester enclosure, PanelSeT PLM, plain door, with metallic plate, 530x430x200mm, IP66, IK10, RAL 7035
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Specification
| Range | PanelSeT |
|---|---|
| Device short name | PLM |
| Enclosure type | Multi-purpose |
| Category | Compact enclosure |
| Nominal height | 530 mm |
| Nominal width | 430 mm |
| Nominal depth | 200 mm |
| Enclosure mounting | Wall mounted |
| Device composition | 1 body, 1 door, 1 mounting plate, 2 lock |
| Door type | Plain |

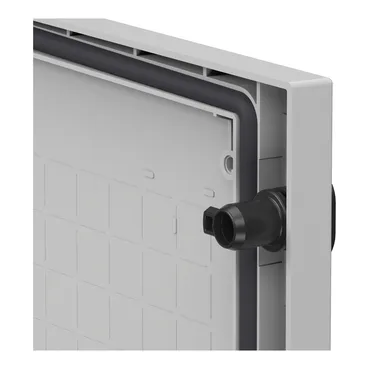

| Lock type | 3 mm double-bar lock |
| Number of locks | 2 |
| Mounting plate description | Plain steel |
| Accessibility for operation | Front |
| Removable parts | Door by hinges, Mounting plate by fixing element |
| Material | Polyester reinforced with fibreglass |
| Colour | Grey (RAL 7035) |
| Standards | NEMA classification 4X, NEMA classification 13, IEC 62208 |
| Product certifications | UL |
| Electrical insulation class | Class II |
| IP degree of protection | IP66 conforming to IEC 60529 |
| IK degree of protection | IK10 conforming to IEC 62262 |
| Fire resistance | 960 °C conforming to IEC 62208 |
| Ambient air temperature for operation | -40…80 °C |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 22.500 cm |
| Package 1 Width | 45.000 cm |
| Package 1 Length | 58.500 cm |
| Package 1 Weight | 8.000 kg |
| Unit Type of Package 2 | PAM |
| Number of Units in Package 2 | 30 |
| Package 2 Height | 188.000 cm |
| Package 2 Width | 100.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 255.000 kg |
| Warranty | 18 months |
