Schneider Electric NSYPLM54BG

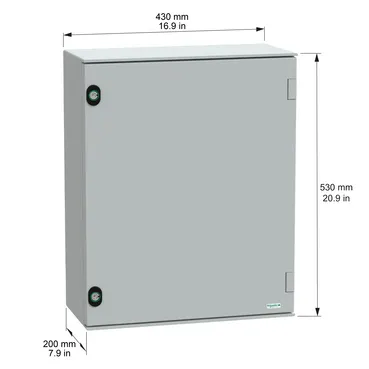

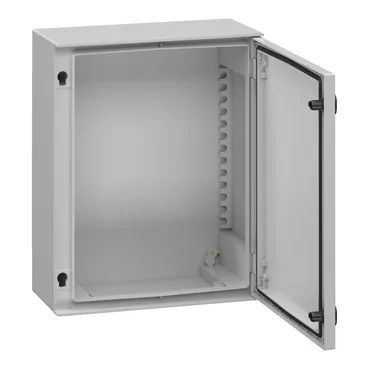

Wall mounted polyester enclosure, PanelSeT PLM, plain door, with bakelite plate, 530x430x200mm, IP66, IK10, RAL 7035
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Specification
| Range |
PanelSeT |
|---|---|
| Device short name |
PLM |
| Enclosure type |
Multi-purpose |
| Category |
Compact enclosure |
| Nominal height |
530 mm |
| Nominal width |
430 mm |
| Nominal depth |
200 mm |
| Enclosure mounting |
Wall mounted |
| Device composition |
1 body, 1 door, 1 mounting plate, 2 lock |
| Door type |
Plain |
| Lock type |

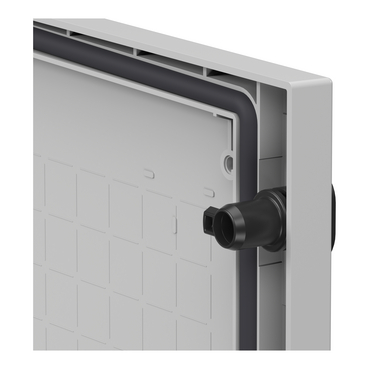

3 mm double-bar lock |
| Number of locks |
2 |
| Mounting plate description |
Plain bakelite |
| Accessibility for operation |
Front |
| Removable parts |
Door by hinges, Mounting plate by fixing element |
| Material |
Polyester reinforced with fibreglass |
| Colour |
Grey (RAL 7035) |
| Standards |
NEMA classification 4X, IEC 62208, NEMA classification 13 |
| Product certifications |
UL |
| Electrical insulation class |
Class II |
| IP degree of protection |
IP66 conforming to IEC 60529 |
| IK degree of protection |
IK10 conforming to IEC 62262 |
| Fire resistance |
960 °C conforming to IEC 62208 |
| Ambient air temperature for operation |
-40…80 °C |
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
59.000 cm |
| Package 1 Width |
45.500 cm |
| Package 1 Length |
23.000 cm |
| Package 1 Weight |
8.220 kg |
| Unit Type of Package 2 |
PAM |
| Number of Units in Package 2 |
30 |
| Package 2 Height |
193.000 cm |
| Package 2 Width |
100.000 cm |
| Package 2 Length |
120.000 cm |
| Package 2 Weight |
260.000 kg |
| Warranty |
18 months |
