Schneider Electric NSYPLM43TVG
This PLM is a wall-mounted enclosure that is suitable for multi-purpose applications The enclosure has a nominal height, width, and depth of 430 mm, 330 mm, and 200 mm, respectively It is made of poly…
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

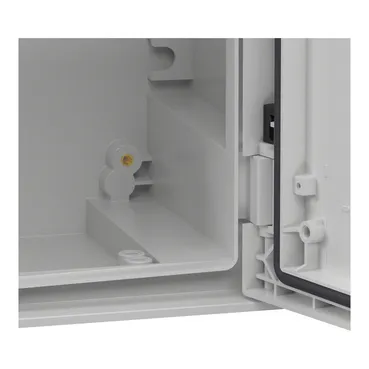

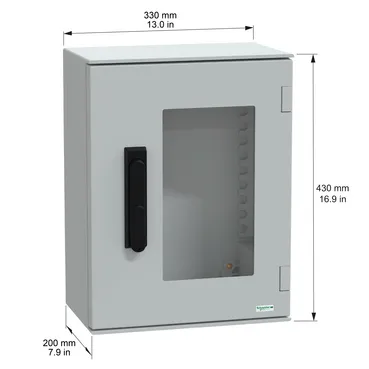

This PLM is a wall-mounted enclosure that is suitable for multi-purpose applications The enclosure has a nominal height, width, and depth of 430 mm, 330 mm, and 200 mm, respectively It is made of polyester reinforced with fibreglass for the body and tempered glass for the door, providing durability and resistance to industrial and outdoor environments The enclosure comes in a grey (RAL 7035) color The enclosure consists of one body, one door, and one handle lock The door is transparent, allowing easy visibility of the equipment inside The door can be opened from the front and has a 3 points lock and a handle with a 1242E key lock
Specification
| Range |
PanelSeT |
|---|---|
| Device short name |
PLM |
| Enclosure type |
Multi-purpose |
| Category |
Compact enclosure |
| Nominal height |
430 mm |
| Nominal width |
330 mm |
| Nominal depth |
200 mm |
| Enclosure mounting |
Wall mounted |
| Device composition |
1 body, 1 door, 1 handle lock |
| Door type |
Transparent |
| Lock type |
3 points lock, handle with 1242E key lock |
| Number of locks |
1 |
| Mounting plate description |
Without mounting plate |
| Accessibility for operation |
Front |
| Removable parts |
Door by hinges |
| Material |
Body: polyester reinforced with fibreglass, Door: tempered glass |
| Colour |
Grey (RAL 7035) |
| Electrical insulation class |
Class II |
| IP degree of protection |
IP66 conforming to IEC 60529 |
| IK degree of protection |
IK08 conforming to IEC 62262 |
| Fire resistance |
960 °C conforming to IEC 62208 |
| Ambient air temperature for operation |
-40…80 °C |
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
23.0 cm |
| Package 1 Width |
35.0 cm |
| Package 1 Length |
46.0 cm |
| Package 1 Weight |
6.305 kg |
| Unit Type of Package 2 |
PAM |
| Number of Units in Package 2 |
50 |
| Package 2 Height |
120 cm |
| Package 2 Width |
100 cm |
| Package 2 Length |
188 cm |
| Package 2 Weight |
335 kg |
| Warranty |
18 months |
