Schneider Electric NSYPLM32PG

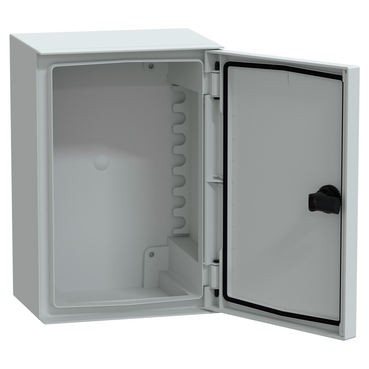

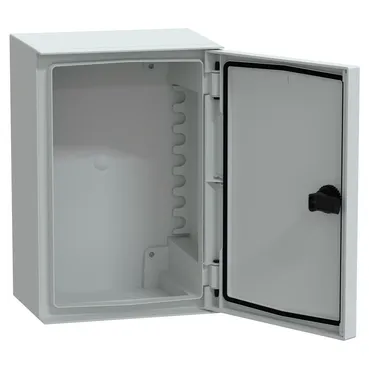

Wall mounted ABS + PC enclosure, PanelSeT PLM, plain door, with metallic plate, 310x215x160mm, IP66, IK10, RAL 7035
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Specification
| Range |
PanelSeT |
|---|---|
| Device short name |
PLM |
| Enclosure type |
Multi-purpose |
| Category |
Compact enclosure |
| Nominal height |
310 mm |
| Nominal width |
215 mm |
| Nominal depth |
160 mm |
| Enclosure mounting |
Wall mounted |
| Device composition |
1 body, 1 door, 1 lock, 1 mounting plate |
| Door type |
Plain |
| Lock type |
3 mm double-bar lock |
| Number of locks |
1 |
| Mounting plate description |
Plain steel |
| Accessibility for operation |
Front |
| Removable parts |
Door by hinges, Mounting plate by fixing element |
| Material |
ABS + PC |
| Colour |
Grey (RAL 7035) |
| Standards |
NEMA classification 4X, IEC 62208, NEMA classification 13 |
| Electrical insulation class |
Class II |
| IP degree of protection |
IP66 conforming to IEC 60529 |
| IK degree of protection |
IK10 conforming to IEC 62262 |
| Fire resistance |
960 °C conforming to IEC 62208 |
| Ambient air temperature for operation |
-40…80 °C |
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
17.000 cm |
| Package 1 Width |
23.500 cm |
| Package 1 Length |
32.000 cm |
| Package 1 Weight |
1.958 kg |
| Unit Type of Package 2 |
P12 |
| Number of Units in Package 2 |
70 |
| Package 2 Height |
133.000 cm |
| Package 2 Width |
80.000 cm |
| Package 2 Length |
120.000 cm |
| Package 2 Weight |
145.000 kg |
| Warranty |
18 months |
