Schneider Electric NSYPLM32G

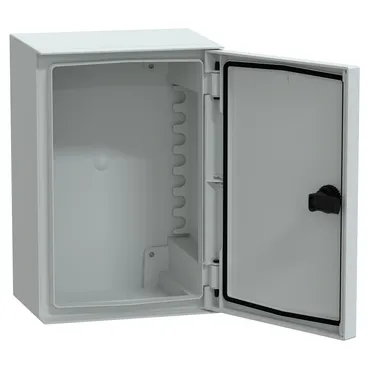

This PLM is a wall-mounted enclosure that is suitable for multi-purpose applications The enclosure has a nominal height, width, and depth of 310 mm, 215 mm, and 160 mm, respectively It is made of ABS…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
This PLM is a wall-mounted enclosure that is suitable for multi-purpose applications The enclosure has a nominal height, width, and depth of 310 mm, 215 mm, and 160 mm, respectively It is made of ABS + PC, which offers durability and resistance to industrial and outdoor environments The enclosure comes in a grey (RAL 7035) color The enclosure consists of one body, one door, and one lock The door is plain and can be opened from the front and has a 3 mm double-bar lock The enclosure offers high protection against dust and water with an IP66 rating (IEC 60529)
Specification
| Range | PanelSeT |
|---|---|
| Device short name | PLM |
| Enclosure type | Multi-purpose |
| Category | Compact enclosure |
| Nominal height | 310 mm |
| Nominal width | 215 mm |
| Nominal depth | 160 mm |
| Enclosure mounting | Wall mounted |
| Device composition | 1 body, 1 door, 1 lock |
| Door type | Plain |
| Lock type | 3 mm double-bar lock |
| Number of locks | 1 |
| Mounting plate description | Without mounting plate |
| Accessibility for operation | Front |
| Removable parts | Door by hinges |
| Material | ABS + PC |
| Colour | Grey (RAL 7035) |
| Standards | NEMA classification 4X, IEC 62208, NEMA classification 13 |
| Electrical insulation class | Class II |
| IP degree of protection | IP66 conforming to IEC 60529 |
| IK degree of protection | IK10 conforming to IEC 62262 |
| Fire resistance | 960 °C conforming to IEC 62208 |
| Ambient air temperature for operation | -40…80 °C |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 17.500 cm |
| Package 1 Width | 24.000 cm |
| Package 1 Length | 32.500 cm |
| Package 1 Weight | 1.440 kg |
| Unit Type of Package 2 | P12 |
| Number of Units in Package 2 | 70 |
| Package 2 Height | 129.000 cm |
| Package 2 Width | 80.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 111.000 kg |
| Warranty | 18 months |
