Schneider Electric NSYPLM108TG
This PLM is a wall-mounted enclosure that is suitable for multi-purpose applications The enclosure has a nominal height, width, and depth of 1056 mm, 852 mm, and 350 mm, respectively It is made of pol…
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

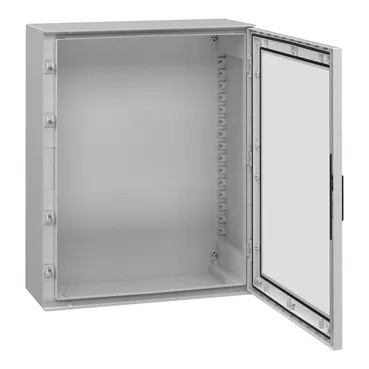

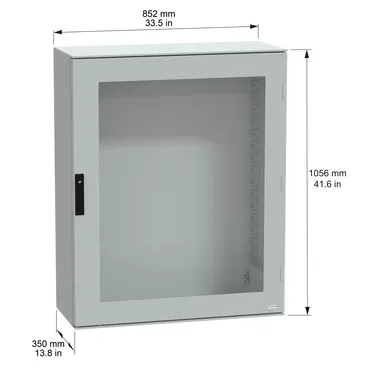

This PLM is a wall-mounted enclosure that is suitable for multi-purpose applications The enclosure has a nominal height, width, and depth of 1056 mm, 852 mm, and 350 mm, respectively It is made of polyester reinforced with fibreglass for the body and tempered glass for the door, which offers durability and resistance to industrial and outdoor environments The enclosure comes in a grey (RAL 7035) color The enclosure consists of one body, one door, and one lock The door is transparent, allowing easy visibility of the equipment inside The door can be opened from the front and has a 4 points lock, handle with 5 mm double bar insert for added security
Specification
| Range |
PanelSeT |
|---|---|
| Device short name |
PLM |
| Enclosure type |
Multi-purpose |
| Category |
Compact enclosure |
| Nominal height |
1056 mm |
| Nominal width |
852 mm |
| Nominal depth |
350 mm |
| Enclosure mounting |
Wall mounted |
| Device composition |
1 body, 1 door, 1 lock |
| Door type |
Transparent |
| Lock type |
4 points lock, handle with 5 mm double bar insert |
| Number of locks |
1 |
| Mounting plate description |
Without mounting plate |
| Accessibility for operation |
Front |
| Removable parts |
Door by hinges |
| Material |
Body: polyester reinforced with fibreglass, Door: tempered glass |
| Colour |
Grey (RAL 7035) |
| Standards |
IEC 62208, NEMA classification 4X, NEMA classification 13 |
| Product certifications |
UL |
| Electrical insulation class |
Class II |
| IP degree of protection |
IP66 conforming to IEC 60529 |
| IK degree of protection |
IK08 conforming to IEC 62262 |
| Fire resistance |
960 °C conforming to IEC 62208 |
| Ambient air temperature for operation |
-40…80 °C |
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
38.000 cm |
| Package 1 Width |
86.500 cm |
| Package 1 Length |
122.500 cm |
| Package 1 Weight |
32.500 kg |
| Unit Type of Package 2 |
PAM |
| Number of Units in Package 2 |
4 |
| Package 2 Height |
165.000 cm |
| Package 2 Width |
100.000 cm |
| Package 2 Length |
120.000 cm |
| Package 2 Weight |
145.000 kg |
| Warranty |
18 months |
