Schneider Electric NSYPLAZ1574G
This PLAZ version of the PLA is a multi-purpose, floor-standing enclosure that is suitable for various applications It has a nominal height of 1500mm, width of 750mm, and depth of 420mm and is made of…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

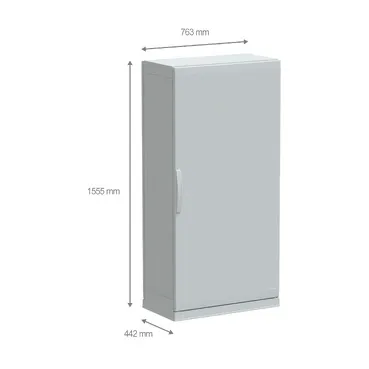

This PLAZ version of the PLA is a multi-purpose, floor-standing enclosure that is suitable for various applications It has a nominal height of 1500mm, width of 750mm, and depth of 420mm and is made of polyester reinforced with fiberglass for durability and resistance to harsh environments The enclosure is available in grey (RAL 7035) and consists of one top part, one bottom part, two side parts, one rear panel, and one plinth The enclosure also features a single plain front door that can be opened up to 120° from either the right or left side, and is secured with a four-point lock and a handle with a 5mm double-bar insert The door and rear panel are removable for maintenance purposes The enclosure offers robust protection against various hazards, including fire, impact, dust, and water
Specification
| Range | PanelSeT |
|---|---|
| Product name | PanelSeT PLA |
| Enclosure type | Multi-purpose |
| Product or component type | Suitable enclosure |
| Version | PLAZ |
| Nominal height | 1500 mm |
| Nominal width | 750 mm |
| Nominal depth | 420 mm |
| Enclosure mounting | Floor-standing |
| Device composition | 1 top part, 1 bottom part, 2 side part, 1 rear panel, 1 door, 1 plinth |
| Body type | Sealed top and open bottom part assembled with side parts |
| Door type | Plain front |
| Number of doors | 1 door(s) |
| Door opening side | Reversible (120 °) |
| Lock type | 4 points lock, handle with 5 mm double bar insert |
| Accessibility for operation | Bottom, Rear, Front |
| Removable parts | Door by hinges, Rear panel by fixing element |
| Material | Polyester reinforced with fibreglass |
| Colour | Grey (RAL 7035) |
| Standards | IEC 62208 |
| Product certifications | Veritas |
| Electrical insulation class | Class II |
| IP degree of protection | IP54 conforming to IEC 60529 (plinth type open bottom) |
| IK degree of protection | IK10 conforming to IEC 62262 (plain door) |
| Fire resistance | 960 °C conforming to IEC 62208 |
| Ambient air temperature for storage | -35…90 °C |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 48.000 cm |
| Package 1 Width | 79.000 cm |
| Package 1 Length | 155.000 cm |
| Package 1 Weight | 42.000 kg |
| Unit Type of Package 2 | PAM |
| Number of Units in Package 2 | 2 |
| Package 2 Height | 169.000 cm |
| Package 2 Width | 100.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 97.000 kg |
| Warranty | 18 months |
