Schneider Electric NSYPLA753G

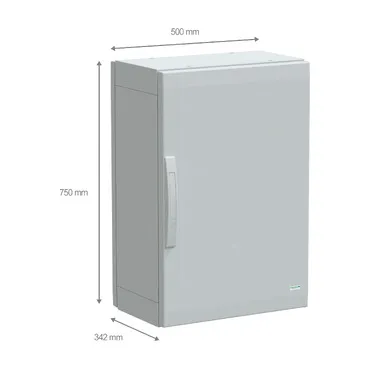

This PLA version of the Thalassa PLA is a multi-purpose, floor-standing enclosure suitable for various applications It has a nominal size of 750mm in height, 500mm in width, and 320mm in depth and is…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
This PLA version of the Thalassa PLA is a multi-purpose, floor-standing enclosure suitable for various applications It has a nominal size of 750mm in height, 500mm in width, and 320mm in depth and is made of polyester reinforced with fiberglass for added durability and resistance to harsh environments The enclosure is available in grey (RAL 7035) and consists of two side parts, one plain front door, and one rear panel The front door is designed to open up to 120° from either the right or left side, and is secured with a two-point lock and a 5mm double-bar insert The door and rear panel can be removed for maintenance purposes The enclosure is certified by UL/cUL, Veritas, and DNV Marine, and offers excellent protection against various hazards It can withstand fire up to 960°C in accordance with the IEC 62208 standard
Specification
| Range |
PanelSeT |
|---|---|
| Product name |
PanelSeT PLA |
| Enclosure type |
Multi-purpose |
| Product or component type |
Suitable enclosure |
| Version |
PLA |
| Nominal height |
750 mm |
| Nominal width |
500 mm |
| Nominal depth |
320 mm |
| Enclosure mounting |
Floor-standing |
| Device composition |
1 top part, 1 bottom part, 2 side part, 1 rear panel, 1 door |
| Body type |
Sealed top and bottom part assembled with side parts |
| Door type |
Plain front |
| Number of doors |
1 door(s) |
| Door opening side |
Reversible (120 °) |
| Lock type |
2 points lock, 5 mm double-bar |
| Accessibility for operation |
Rear, Front |
| Removable parts |
Door by hinges, Rear panel by fixing element |
| Material |
Polyester reinforced with fibreglass |
| Colour |
Grey (RAL 7035) |
| Standards |
UL 508 A, IEC 62208 |
| NEMA degree of protection |
NEMA 5, NEMA 3R, NEMA 3X, NEMA 13, NEMA 2, NEMA 1, NEMA 3S, NEMA 12, NEMA 3 |
| Product certifications |
UL/cUL listed, Veritas, DNV Marine |
| Electrical insulation class |
Class II |
| IP degree of protection |
IP65 conforming to IEC 60529 (completely sealed) |
| IK degree of protection |
IK10 conforming to IEC 62262 (plain door) |
| Fire resistance |
960 °C conforming to IEC 62208 |
| Ambient air temperature for storage |
-35…90 °C |
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
35.000 cm |
| Package 1 Width |
54.000 cm |
| Package 1 Length |
76.000 cm |
| Package 1 Weight |
17.600 kg |
| Unit Type of Package 2 |
PAM |
| Number of Units in Package 2 |
10 |
| Package 2 Height |
165.000 cm |
| Package 2 Width |
100.000 cm |
| Package 2 Length |
120.000 cm |
| Package 2 Weight |
188.000 kg |
| Warranty |
18 months |
