Schneider Electric NSYPLA554G
This PLA is a multi-purpose, floor-standing enclosure that is suitable for various applications It has a nominal size of 500mm in height, 500mm in width, and 420mm in depth The enclosure is made of po…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

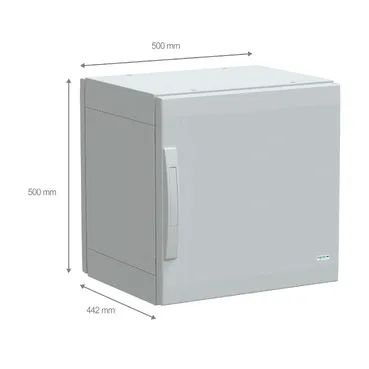

This PLA is a multi-purpose, floor-standing enclosure that is suitable for various applications It has a nominal size of 500mm in height, 500mm in width, and 420mm in depth The enclosure is made of polyester reinforced with fiberglass for enhanced durability and resistance to harsh environments, both indoor and outdoor It is available in grey (RAL 7035) and consists of a top and bottom part, two side parts, one rear panel, and one door The door can be opened up to 120° from either the right or left side, and is secured with a two-point lock and a 5mm double-bar The door and rear panel can be removed for maintenance purposes The enclosure offers robust protection against fire, impacts, dust, and water
Specification
| Range |
PanelSeT |
|---|---|
| Product name |
PanelSeT PLA |
| Enclosure type |
Multi-purpose |
| Product or component type |
Suitable enclosure |
| Version |
PLA |
| Nominal height |
500 mm |
| Nominal width |
500 mm |
| Nominal depth |
420 mm |
| Enclosure mounting |
Floor-standing |
| Device composition |
1 top part, 1 bottom part, 2 side part, 1 rear panel, 1 door |
| Body type |
Sealed top and bottom part assembled with side parts |
| Door type |
Plain front |
| Number of doors |
1 door(s) |
| Door opening side |
Reversible (120 °) |
| Lock type |
2 points lock, 5 mm double-bar |
| Accessibility for operation |
Rear, Front |
| Removable parts |
Door by hinges, Rear panel by fixing element |
| Material |
Polyester reinforced with fibreglass |
| Colour |
Grey (RAL 7035) |
| Standards |
IEC 62208, UL 508 A |
| NEMA degree of protection |
NEMA 5, NEMA 12, NEMA 13, NEMA 3S, NEMA 2, NEMA 3X, NEMA 3R, NEMA 3, NEMA 1 |
| Product certifications |
DNV Marine, Veritas, UL/cUL listed |
| Electrical insulation class |
Class II |
| IP degree of protection |
IP65 conforming to IEC 60529 (completely sealed) |
| IK degree of protection |
IK10 conforming to IEC 62262 (plain door) |
| Fire resistance |
960 °C conforming to IEC 62208 |
| Ambient air temperature for storage |
-35…90 °C |
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
51.500 cm |
| Package 1 Width |
52.500 cm |
| Package 1 Length |
45.000 cm |
| Package 1 Weight |
14.800 kg |
| Unit Type of Package 2 |
PAM |
| Number of Units in Package 2 |
12 |
| Package 2 Height |
167.000 cm |
| Package 2 Width |
100.000 cm |
| Package 2 Length |
120.000 cm |
| Package 2 Weight |
191.000 kg |
| Warranty |
18 months |
