Schneider Electric NSYPLA2074G
This PLA is a multi-purpose, floor-standing enclosure that is suitable for various applications It measures 2000mm in height, 750mm in width, and 420mm in depth, and is made of polyester reinforced wi…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

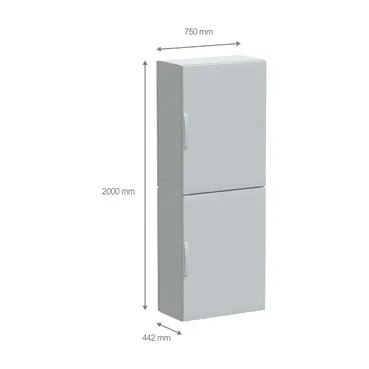

This PLA is a multi-purpose, floor-standing enclosure that is suitable for various applications It measures 2000mm in height, 750mm in width, and 420mm in depth, and is made of polyester reinforced with fiberglass for durability and resistance to harsh environments The enclosure is available in grey (RAL 7035) and consists of two side parts, two plain front doors, one rear panel, and one plinth The front doors can be opened up to 120° from either the right or left side, providing easy access to the equipment inside The doors feature a four-point lock with a 5mm double-bar insert Both the doors and rear panel are removable for maintenance purposes The enclosure offers robust protection against various hazards, including fire, impact, dust, and water
Specification
| Range |
PanelSeT |
|---|---|
| Product name |
PanelSeT PLA |
| Enclosure type |
Multi-purpose |
| Product or component type |
Suitable enclosure |
| Version |
PLA |
| Nominal height |
2000 mm |
| Nominal width |
750 mm |
| Nominal depth |
420 mm |
| Enclosure mounting |
Floor-standing |
| Device composition |
1 top part, 1 bottom part, 2 side part, 1 rear panel, 2 door |
| Body type |
Sealed top and bottom part assembled with side parts |
| Door type |
Plain front |
| Number of doors |
2 door(s) |
| Door opening side |
Reversible (120 °) |
| Lock type |
4 points lock, 5 mm double-bar |
| Accessibility for operation |
Rear, Front |
| Removable parts |
Door by hinges, Rear panel by fixing element |
| Material |
Polyester reinforced with fibreglass |
| Colour |
Grey (RAL 7035) |
| Standards |
UL 508 A, IEC 62208 |
| NEMA degree of protection |
NEMA 12, NEMA 3X, NEMA 2, NEMA 5, NEMA 13, NEMA 3R, NEMA 3, NEMA 3S, NEMA 1 |
| Product certifications |
DNV Marine, Veritas, UL/cUL listed |
| Electrical insulation class |
Class II |
| IP degree of protection |
IP65 conforming to IEC 60529 (completely sealed) |
| IK degree of protection |
IK10 conforming to IEC 62262 (plain door) |
| Fire resistance |
960 °C conforming to IEC 62208 |
| Ambient air temperature for storage |
-35…90 °C |
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
213.000 cm |
| Package 1 Width |
80.000 cm |
| Package 1 Length |
49.000 cm |
| Package 1 Weight |
66.000 kg |
| Warranty |
18 months |
