Schneider Electric NSYPLA1576G

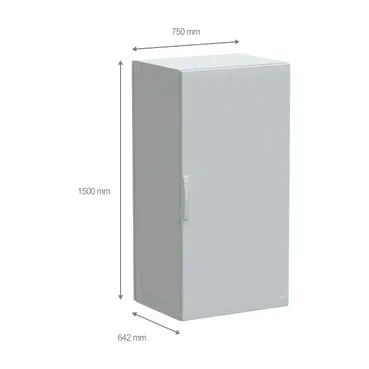

This PLA is a versatile, floor-standing enclosure that is suitable for various applications It has nominal dimensions of 1500mm in height, 750mm in width, and 620mm in depth It is made of polyester re…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
This PLA is a versatile, floor-standing enclosure that is suitable for various applications It has nominal dimensions of 1500mm in height, 750mm in width, and 620mm in depth It is made of polyester reinforced with fiberglass, offering durability and resistance to harsh environments, including outdoor and industrial settings The enclosure is available in grey (RAL 7035) It consists of two side parts, one plain front door, one rear panel, and is designed for easy access to the equipment inside The door can be opened from both the right and left sides, up to 120°, and features a four-point lock with a 5mm double-bar insert The door and rear panel are also removable for maintenance purposes
Specification
| Range |
PanelSeT |
|---|---|
| Product name |
PanelSeT PLA |
| Enclosure type |
Multi-purpose |
| Product or component type |
Suitable enclosure |
| Version |
PLA |
| Nominal height |
1500 mm |
| Nominal width |
750 mm |
| Nominal depth |
620 mm |
| Enclosure mounting |
Floor-standing |
| Device composition |
1 top part, 1 bottom part, 2 side part, 1 rear panel, 1 door |
| Body type |
Sealed top and bottom part assembled with side parts |
| Door type |
Plain front |
| Number of doors |
1 door(s) |
| Door opening side |
Reversible (120 °) |
| Lock type |
4 points lock, 5 mm double-bar |
| Accessibility for operation |
Front, Rear |
| Removable parts |
Door by hinges, Rear panel by fixing element |
| Material |
Polyester reinforced with fibreglass |
| Colour |
Grey (RAL 7035) |
| Standards |
IEC 62208, UL 508 A |
| NEMA degree of protection |
NEMA 2, NEMA 3S, NEMA 1, NEMA 5, NEMA 12, NEMA 3X, NEMA 3R, NEMA 3, NEMA 13 |
| Product certifications |
DNV Marine, UL/cUL listed, Veritas |
| Electrical insulation class |
Class II |
| IP degree of protection |
IP65 conforming to IEC 60529 (completely sealed) |
| IK degree of protection |
IK10 conforming to IEC 62262 (plain door) |
| Fire resistance |
960 °C conforming to IEC 62208 |
| Ambient air temperature for storage |
-35…90 °C |
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
65.000 cm |
| Package 1 Width |
78.000 cm |
| Package 1 Length |
153.000 cm |
| Package 1 Weight |
52.000 kg |
| Warranty |
18 months |
