Schneider Electric NSYPLA1574TG

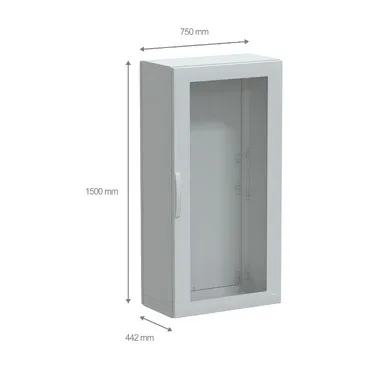

This PLA is a multi-purpose, floor-standing enclosure that is suitable for various applications It measures 1500mm in height, 750mm in width, and 420mm in depth, and is made of polyester reinforced wi…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
This PLA is a multi-purpose, floor-standing enclosure that is suitable for various applications It measures 1500mm in height, 750mm in width, and 420mm in depth, and is made of polyester reinforced with fiberglass for durability and resistance to harsh environments The enclosure is available in grey (RAL 7035) and comprises two side parts, one transparent front door, and one rear panel The front door is designed to open up to 120° from either the right or left side, and features a four-point lock with a 5mm double-bar insert for added security The rear panel and door can be removed for maintenance purposes The enclosure provides robust protection against various hazards, including fire, impact, dust, and water It can withstand fire up to 960°C in accordance with IEC 62208 and is rated IK08 (IEC 62262), indicating high resistance to impacts
Specification
| Range |
PanelSeT |
|---|---|
| Product name |
PanelSeT PLA |
| Enclosure type |
Multi-purpose |
| Product or component type |
Suitable enclosure |
| Version |
PLA |
| Nominal height |
1500 mm |
| Nominal width |
750 mm |
| Nominal depth |
420 mm |
| Enclosure mounting |
Floor-standing |
| Device composition |
1 top part, 1 bottom part, 2 side part, 1 rear panel, 1 door |
| Body type |
Sealed top and bottom part assembled with side parts |
| Door type |
Transparent front |
| Number of doors |
1 door(s) |
| Door opening side |
Reversible (120 °) |
| Lock type |
4 points lock, 5 mm double-bar |
| Accessibility for operation |
Front, Rear |
| Removable parts |
Door by hinges, Rear panel by fixing element |
| Material |
Polyester reinforced with fibreglass |
| Colour |
Grey (RAL 7035) |
| Standards |
IEC 62208, UL 508 A |
| NEMA degree of protection |
NEMA 3X, NEMA 3, NEMA 3S, NEMA 13, NEMA 2, NEMA 1, NEMA 3R, NEMA 12, NEMA 5 |
| Product certifications |
UL/cUL listed, DNV Marine, Veritas |
| Electrical insulation class |
Class II |
| IP degree of protection |
IP65 conforming to IEC 60529 (completely sealed) |
| IK degree of protection |
IK08 conforming to IEC 62262 (glazed door) |
| Fire resistance |
960 °C conforming to IEC 62208 |
| Ambient air temperature for storage |
-35…90 °C |
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
46.000 cm |
| Package 1 Width |
78.500 cm |
| Package 1 Length |
151.500 cm |
| Package 1 Weight |
46.000 kg |
| Unit Type of Package 2 |
PAM |
| Number of Units in Package 2 |
2 |
| Package 2 Height |
167.000 cm |
| Package 2 Width |
100.000 cm |
| Package 2 Length |
120.000 cm |
| Package 2 Weight |
105.000 kg |
| Warranty |
18 months |
