Schneider Electric NSYPLA15124TG
This PLA version of the Thalassa PLA is a multi-purpose, floor-standing enclosure that is suitable for various applications It has nominal dimensions of 1500mm in height, 1250mm in width, and 420mm in…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

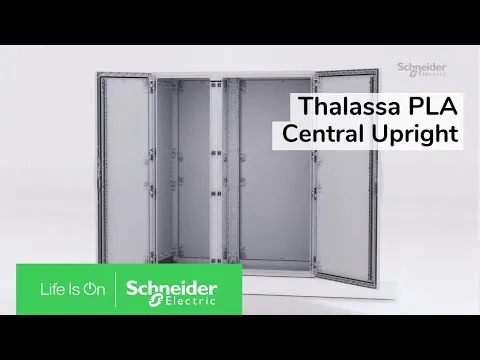

This PLA version of the Thalassa PLA is a multi-purpose, floor-standing enclosure that is suitable for various applications It has nominal dimensions of 1500mm in height, 1250mm in width, and 420mm in depth The enclosure is made of polyester reinforced with fiberglass, providing durability and resistance to harsh environments, including outdoor and industrial settings The enclosure is available in grey (RAL 7035) It is made up of two side parts, two transparent front doors, and two rear panels The doors can be opened from both the right and left sides, up to 120°, and feature a four-point lock with a 5mm double-bar insert The doors and rear panels are also removable for maintenance purposes
Specification
| Range |
PanelSeT |
|---|---|
| Product name |
PanelSeT PLA |
| Enclosure type |
Multi-purpose |
| Product or component type |
Suitable enclosure |
| Version |
PLA |
| Nominal height |
1500 mm |
| Nominal width |
1250 mm |
| Nominal depth |
420 mm |
| Enclosure mounting |
Floor-standing |
| Device composition |
1 top part, 1 bottom part, 2 side part, 2 door, 2 rear panel |
| Body type |
Sealed top and bottom part assembled with side parts |
| Door type |
Transparent front |
| Number of doors |
2 door(s) |
| Door opening side |
Right and left (120 °) |
| Lock type |
4 points lock, 5 mm double-bar |
| Accessibility for operation |
Rear, Front |
| Removable parts |
Door by hinges, Rear panel by fixing element |
| Material |
Polyester reinforced with fibreglass |
| Colour |
Grey (RAL 7035) |
| Standards |
UL 508 A, IEC 62208 |
| NEMA degree of protection |
NEMA 13, NEMA 2, NEMA 1, NEMA 12 |
| Product certifications |
DNV Marine, UL/cUL listed, Veritas |
| Electrical insulation class |
Class II |
| IP degree of protection |
IP65 conforming to IEC 60529 (completely sealed) |
| IK degree of protection |
IK08 conforming to IEC 62262 (glazed door) |
| Fire resistance |
960 °C conforming to IEC 62208 |
| Ambient air temperature for storage |
-35…90 °C |
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
48.500 cm |
| Package 1 Width |
129.000 cm |
| Package 1 Length |
152.000 cm |
| Package 1 Weight |
76.000 kg |
| Unit Type of Package 2 |
PAL |
| Number of Units in Package 2 |
2 |
| Package 2 Height |
165.000 cm |
| Package 2 Width |
100.000 cm |
| Package 2 Length |
130.000 cm |
| Package 2 Weight |
165.000 kg |
| Warranty |
18 months |
